SSD1A Series

Catalog

SSR RELAY SPST-NO 20A 48-600V

Part	Approval Agency	Mounting Type	Load Current	Package / Case	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
SCHNEIDER ELECTRIC SSD1A320M7C3	CSA IEC UL	DIN Rail	20 A	Module	AC Zero Cross	600 V	48 V	280 VAC/DC	90 VAC	80 °C	-40 C	Screw Terminal
SCHNEIDER ELECTRIC SSD1A335BDC2	CSA IEC UL	DIN Rail	35 A	Module	AC Zero Cross	600 V	48 V	32 VDC	4 V	80 °C	-40 C	Screw Terminal
SCHNEIDER ELECTRIC SSD1A320BDRC3	CSA IEC UL	DIN Rail	20 A	Module	AC	600 V	48 V	32 VDC	4 V	80 °C	-40 C	Screw Terminal
SCHNEIDER ELECTRIC SSD1A360BDC2	CSA IEC UL	DIN Rail	60 A	Module	AC Zero Cross	600 V	48 V	32 VDC	4 V	80 °C	-40 C	Screw Terminal

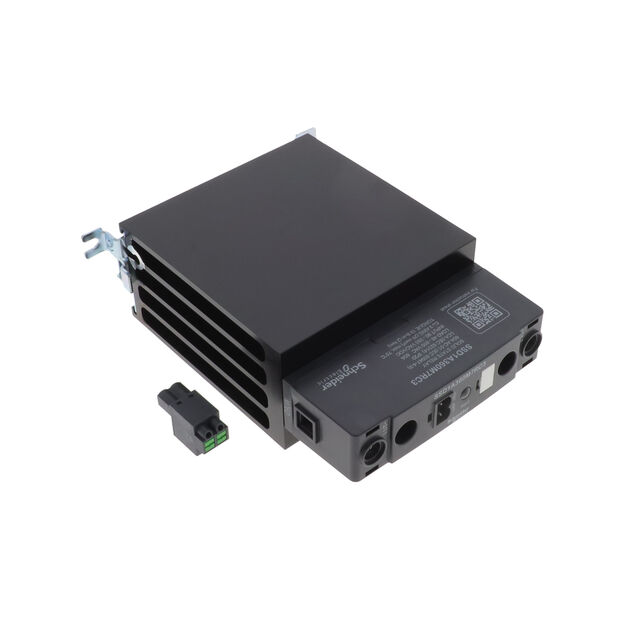

SCHNEIDER ELECTRIC SSD1A360M7RC3	CSA IEC UL	DIN Rail	60 A	SSR with Integrated Heat Sink	AC	600 V	48 V	280 VAC/DC	90 VAC	80 °C	-40 C	Screw Terminal
SCHNEIDER ELECTRIC SSD1A320M7RC3	CSA IEC UL	DIN Rail	20 A	Module	AC	600 V	48 V	280 VAC/DC	90 VAC	80 °C	-40 C	Screw Terminal

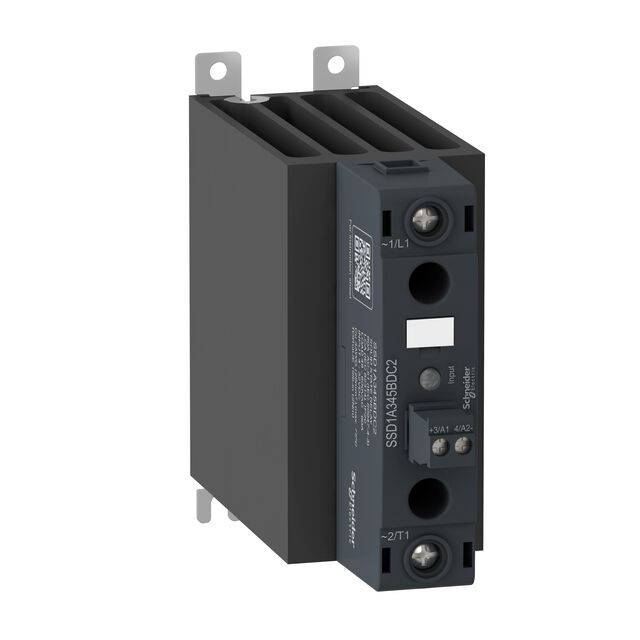

SCHNEIDER ELECTRIC SSD1A345BDC2	CSA IEC UL	DIN Rail	45 A	Module	AC Zero Cross	600 V	48 V	32 VDC	4 V	80 °C	-40 C	Screw Terminal

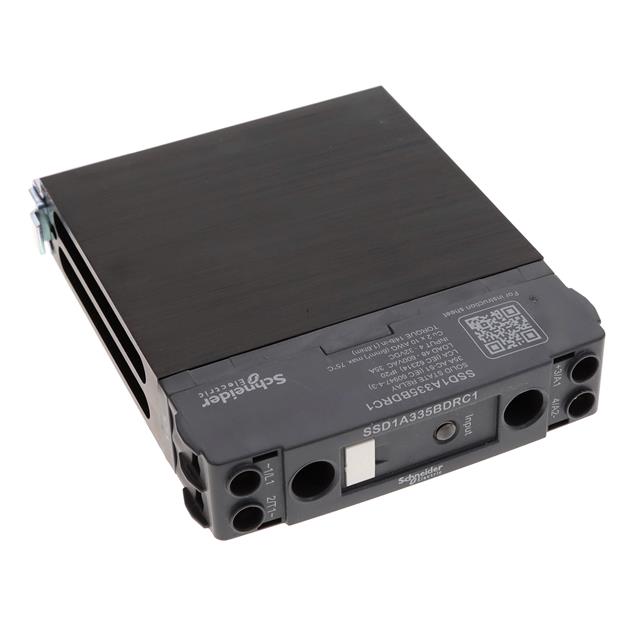

SCHNEIDER ELECTRIC SSD1A335BDRC1	CSA IEC UL	DIN Rail	35 A	Module	AC	600 V	48 V	32 VDC	4 V	80 °C	-40 C	Screw Terminal
SCHNEIDER ELECTRIC SSD1A335M7C1	CSA IEC UL	DIN Rail	35 A	Module	AC Zero Cross	600 V	48 V	280 VAC/DC	90 VAC	80 °C	-40 C	Screw Terminal
SCHNEIDER ELECTRIC SSD1A360M7RC2	CSA IEC UL	DIN Rail	60 A	SSR with Integrated Heat Sink	AC	600 V	48 V	280 VAC/DC	90 VAC	80 °C	-40 C	Screw Terminal
