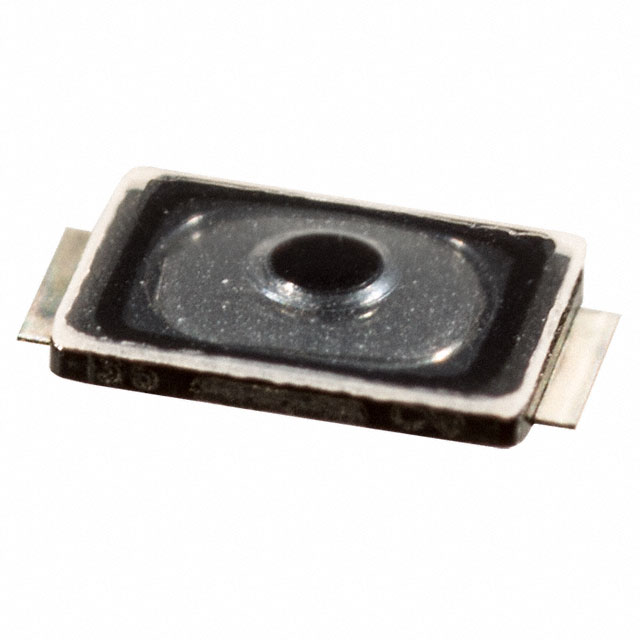

EVP-AW Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Termination Style	Contact Rating @ Voltage [x]	Actuator Orientation	Actuator Height off PCB, Vertical	Outline [x]	Outline [y]	Switch Travel	Mounting Type	Circuit	Switch Function	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Type	Mechanical Life	Operating Force

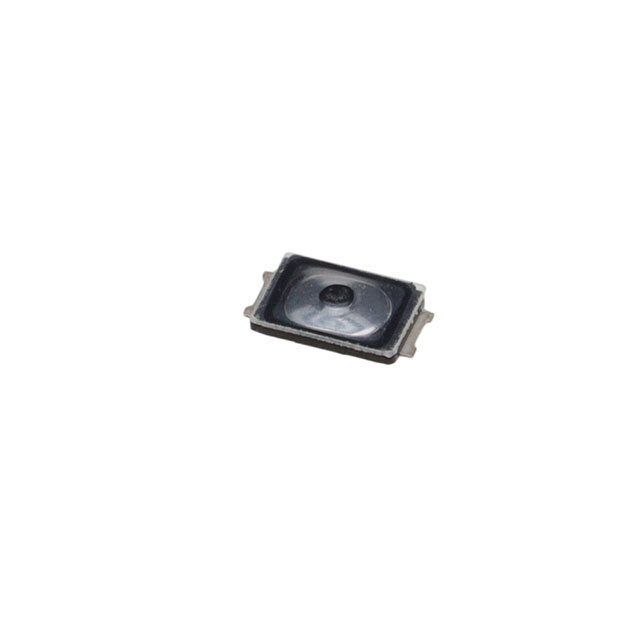

Panasonic Industrial Automation Sales EVP-AWBD4A	SMD (SMT) Tab	0.02 A 15 VDC	Top Actuated	0.6 mm	3 mm	2 mm	0.13 mm	Surface Mount	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Non-Illuminated	Standard	500000 Cycles
Panasonic Industrial Automation Sales EVP-AWCD4A	SMD (SMT) Tab	0.02 A 15 VDC	Top Actuated	0.6 mm	3 mm	2 mm	0.13 mm	Surface Mount	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Non-Illuminated	Standard	500000 Cycles	240 gf
Panasonic Industrial Automation Sales EVP-AWCD2A	SMD (SMT) Tab	0.02 A 15 VDC	Top Actuated	0.6 mm	3 mm	2 mm	0.13 mm	Surface Mount	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Non-Illuminated	Standard	500000 Cycles	240 gf
Panasonic Industrial Automation Sales EVP-AWED2A	SMD (SMT) Tab	0.02 A 15 VDC	Top Actuated	0.6 mm	3 mm	2 mm	0.15 mm	Surface Mount	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Non-Illuminated	Standard	300000 Cycles	330 gf
Panasonic Industrial Automation Sales EVP-AWBA2A	SMD (SMT) Tab	0.02 A 15 VDC	Top Actuated	0.6 mm	3 mm	2 mm	0.13 mm	Surface Mount	SPST-NO	Off-Mom	IP67 - Dust Tight Waterproof	85 °C	-40 °C	Non-Illuminated	Standard	500000 Cycles
