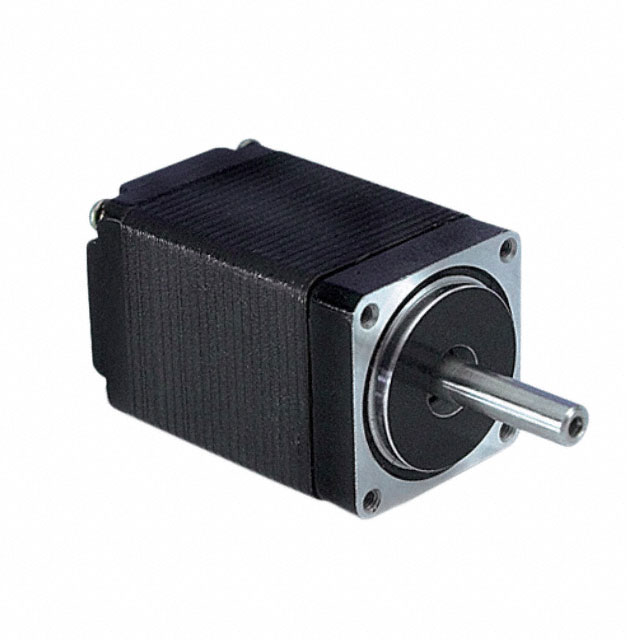

WO-211-20 Series
Manufacturer: Lin Engineering
Beta
⌘K
STEPPER MOTOR
| Part | Coil Type | Size / Dimension | Size / Dimension | Size / Dimension | Steps per Revolution | Current Rating (Amps) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Step Angle | Voltage - Rated | Features | NEMA Frame Size | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | Bipolar | 1.11 in | 28.2 mm | Square | 200 | 1.3 A | 20 mm | 0.787 in | 1.9 Ohms | -20 ░C | 50 °C | Wire Leads | 1.8 ° | 24 VDC | Round Shaft | 11 | 0.197 in | 5 mm | 0.906 in | 23 mm | 16.6 oz-in | 117.22 mNm |
