AAA4MB Series

Catalog

AAA SERIES, 4 CONTACTS, MALE, METAL HANDLE, BLACK FINISH, SILVER CONTACT PLATING, 0.135"[3.4MM] CABLE STRAIN RELIEF SIZE, SEALED

Part	Color	Ingress Protection	Shell Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Shell Finish	Primary Material	Applications	Shielding	Insert Material	Connector Type	Orientation	Number of Positions	Contact Material	Shell Size - Insert	Contact Finish - Mating	Fastening Type	Voltage Rating	Current Rating (Amps)
SWITCHCRAFT/CONXALL AAA4MBZH	Black	IP66 - Dust Tight Water Resistant	Zinc Alloy	0.15 "	7.24 mm	0.285 in	3.81 mm	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief	-40 C	65 °C	Chrome	Zinc	Chrome	Metal	Audio Instrumentation	Shielded	Thermoplastic	Receptacle Male Pins	Keyed	4	Copper Alloy	XLR	Silver	Latch Lock

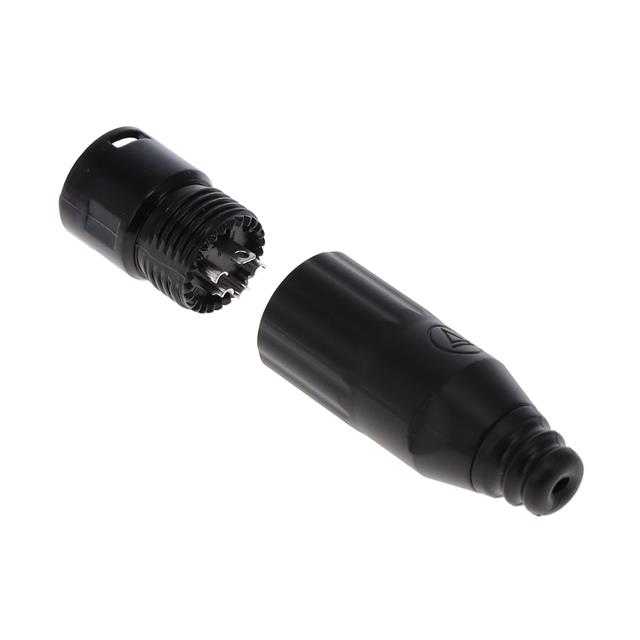

SWITCHCRAFT/CONXALL AAA4MBZ	Black		Zinc Alloy	0.1 "	5.59 mm	0.22 in	2.54 mm	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief			Chrome	Zinc	Chrome	Metal	Audio Industrial Instrumentation Medical	Shielded	Thermoplastic	Receptacle Male Pins	Keyed	4	Copper Alloy	XLR	Silver	Latch Lock	125 VAC	10 A
SWITCHCRAFT/CONXALL AAA4MBAUZH	Black	IP66 - Dust Tight Water Resistant	Zinc Alloy	0.15 "	7.24 mm	0.285 in	3.81 mm	Free Hanging (In-Line)	Backshell Cable Clamp Ground Strain Relief	-40 C	65 °C	Chrome	Zinc	Chrome	Metal	Audio Instrumentation	Shielded	Thermoplastic	Receptacle Male Pins	Keyed	4	Copper Alloy	XLR	Gold	Latch Lock
