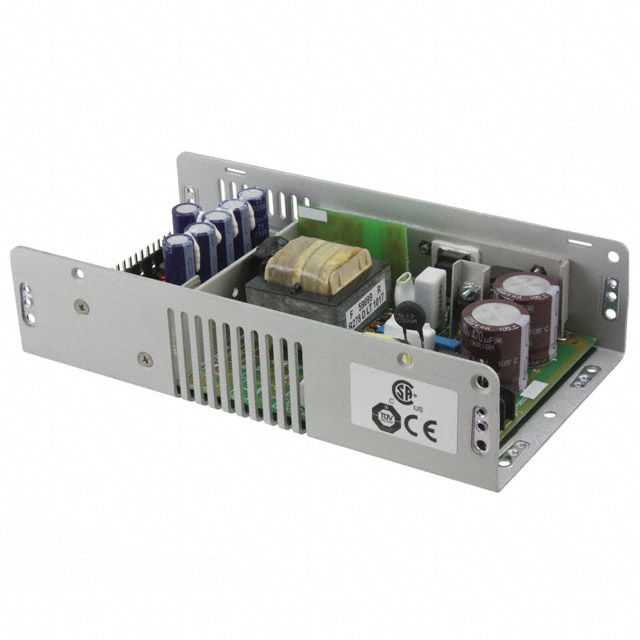

MAP130 Series

Catalog

SWITCHING POWER SUPPLIES POWER SUPPLY

Part	Type	Current - Output 4	Approval Agency	Features	Voltage - Output 4	Operating Temperature [Max]	Power (Watts)	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Efficiency	Applications	Voltage - Output 1	Number of Outputs	Current - Output 2	Mounting Type	Voltage - Output 2	Voltage - Output 3	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]
Bel Fuse Inc. MAP130-4010G	Open Frame	3 A	CB cCSAus CE	Adjustable Output Remote Sense Universal Input	-12 V	70 °C	130 W	20 A	132 VAC 264 VAC	90 VAC 175 VAC	2.6 kV	80 %	ITE (Commercial)	5 V	4	5 A	Chassis Mount	12 V	-5 V	215.9 mm	8.5 "	50.8 mm	2 in	4.5 "	114.3 mm
Bel Fuse Inc. MAP130-1024G	Open Frame		CB cCSAus CE	Adjustable Output Remote Sense Universal Input		70 °C	130 W	6.2 A	132 VAC 264 VAC	90 VAC 175 VAC	2.6 kV	80 %	ITE (Commercial)	24 V	1		Chassis Mount			215.9 mm	8.5 "	50.8 mm	2 in	4.5 "	114.3 mm
Bel Fuse Inc. MAP130-1012	Open Frame		CB cCSAus CE	Adjustable Output Remote Sense Universal Input		70 °C	130 W	12 A	132 VAC 264 VAC	90 VAC 175 VAC	2.6 kV	80 %	ITE (Commercial)	12 V	1		Chassis Mount			215.9 mm	8.5 "	50.8 mm	2 in	4.5 "	114.3 mm
Bel Fuse Inc. MAP130-1012G	Open Frame		CB cCSAus CE	Adjustable Output Remote Sense Universal Input		70 °C	130 W	12 A	132 VAC 264 VAC	90 VAC 175 VAC	2.6 kV	80 %	ITE (Commercial)	12 V	1		Chassis Mount			215.9 mm	8.5 "	50.8 mm	2 in	4.5 "	114.3 mm
Bel Fuse Inc. MAP130-4002G	Open Frame	1 A	CB cCSAus CE	Adjustable Output Remote Sense Universal Input	12 V	70 °C	130 W	20 A	132 VAC 264 VAC	90 VAC 175 VAC	2.6 kV	80 %	ITE (Commercial)	5 V	4	5 A	Chassis Mount	12 V	-12 V	215.9 mm	8.5 "	50.8 mm	2 in	4.5 "	114.3 mm
