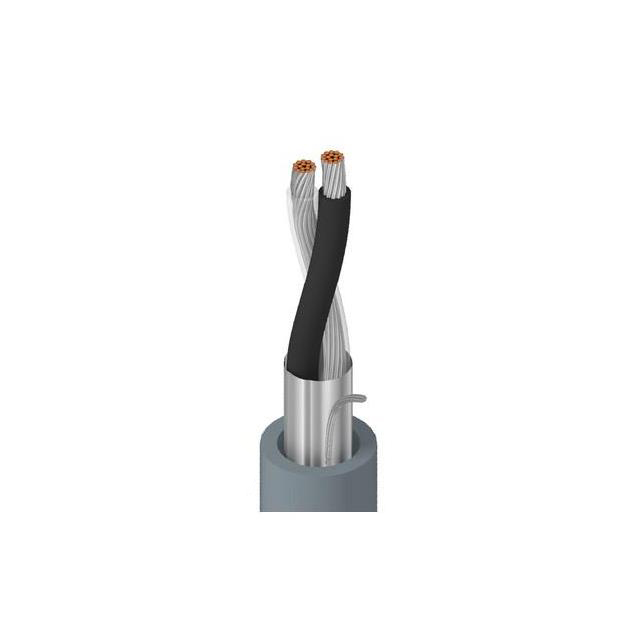

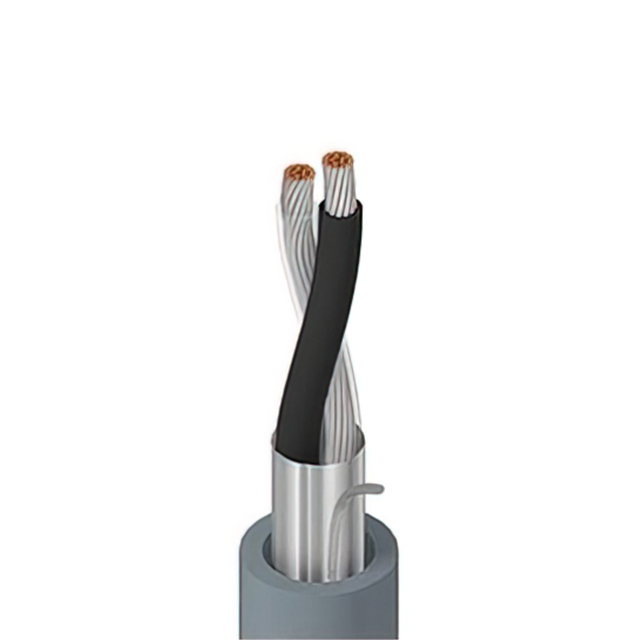

1503A Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #22 PVC FS FRPVC
| Part | Shield Coverage | Shield Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Number of Conductors | Jacket (Insulation) Material | Conductor Material | Jacket Color | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Length | Length | Usage | Voltage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Foil | 30 AWG | 7 | Drain Wire | 2 | Poly-Vinyl Chloride (PVC) Riser | Copper Tinned | Green | 18 AWG 22 AWG | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | 0.142 in | 3.61 mm | 0.02 " | 0.508 mm | UL Style CMG | 304.8 m | 1000 ft | Audio Control | 300 VDC | Multi-Conductor |
 Belden Inc. | 100 % | Aluminum Polyester | Foil | 30 AWG | 7 | Drain Wire | 2 | Poly-Vinyl Chloride (PVC) Riser | Copper Tinned | Brown | 18 AWG 22 AWG | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | 0.142 in | 3.61 mm | 0.02 " | 0.508 mm | UL Style CMG | 304.8 m | 1000 ft | Audio Control | 300 VDC | Multi-Conductor |
Belden Inc. | 100 % | Aluminum Polyester | Foil | 30 AWG | 7 | Drain Wire | 2 | Poly-Vinyl Chloride (PVC) Riser | Copper Tinned | White | 18 AWG 22 AWG | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | 0.142 in | 3.61 mm | 0.02 " | 0.508 mm | UL Style CMG | 304.8 m | 1000 ft | Audio Control | 300 VDC | Multi-Conductor |
Belden Inc. | 100 % | Aluminum Polyester | Foil | 30 AWG | 7 | Drain Wire | 2 | Poly-Vinyl Chloride (PVC) Riser | Copper Tinned | Orange | 18 AWG 22 AWG | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | 0.142 in | 3.61 mm | 0.02 " | 0.508 mm | UL Style CMG | 304.8 m | 1000 ft | Audio Control | 300 VDC | Multi-Conductor |
 Belden Inc. | 100 % | Aluminum Polyester | Foil | 30 AWG | 7 | Drain Wire | 2 | Poly-Vinyl Chloride (PVC) Riser | Copper Tinned | Yellow | 18 AWG 22 AWG | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | 0.142 in | 3.61 mm | 0.02 " | 0.508 mm | UL Style CMG | 304.8 m | 1000 ft | Audio Control | 300 VDC | Multi-Conductor |
Belden Inc. | 100 % | Aluminum Polyester | Foil | 30 AWG | 7 | Drain Wire | 2 | Poly-Vinyl Chloride (PVC) Riser | Copper Tinned | Black | 18 AWG 22 AWG | -30 ░C | 90 °C | Poly-Vinyl Chloride (PVC) | 0.142 in | 3.61 mm | 0.02 " | 0.508 mm | UL Style CMG | 304.8 m | 1000 ft | Audio Control | 300 VDC | Multi-Conductor |
