SU16VD Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 250V 0.04MH 3A DCR=0.07OHMS

Part	Package / Case	Current Rating (Max) [Max]	Inductance @ Frequency	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)	Mounting Type	Voltage Rating - AC	Filter Type	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
KEMET SU16VD-30040	Vertical 4 PC Pin	3 A	40 µH	27.5 mm	1.083 in	70 mOhm	Through Hole	250 V	Power Line	2	120 °C	-25 °C	23 mm	0.906 in	19 mm	0.748 in

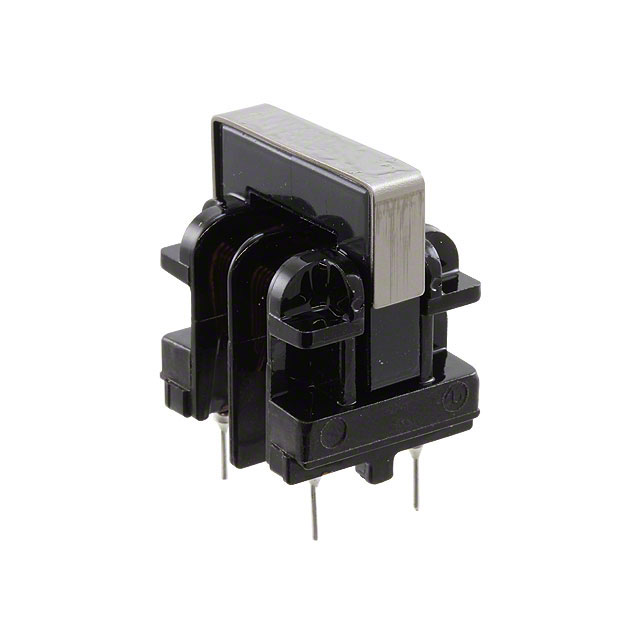

KEMET SU16VD-30030	Vertical 4 PC Pin	3 A		27.5 mm	1.083 in	70 mOhm	Through Hole	250 V	Power Line	2	120 °C	-25 °C	23 mm	0.906 in	19 mm	0.748 in
