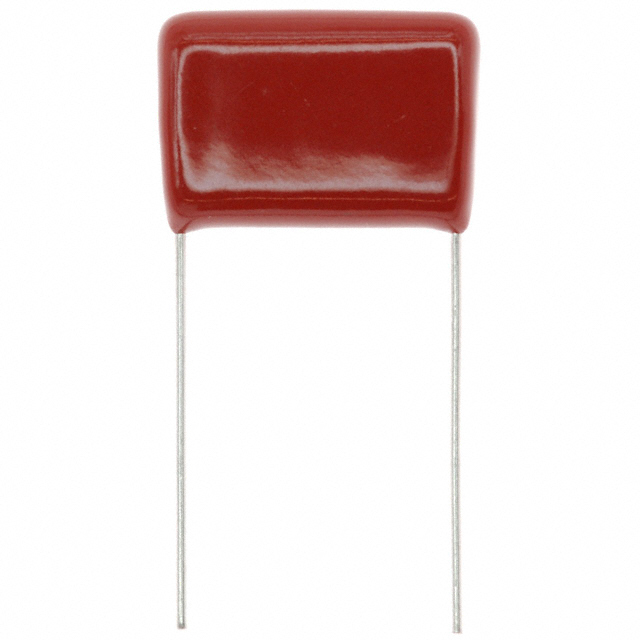

ECQ-P4104 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP FILM 0.1UF 5% 400VDC RADIAL
| Part | Termination | Dielectric Material | Voltage Rating - DC | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Capacitance | Tolerance | Lead Spacing [x] | Lead Spacing [x] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | PC Pins | Polypropylene (PP) | 400 V | Radial | 0.965 " | 0.354 in | 9 mm | 24.5 mm | 100000 pF | 5 % | 0.787 in | 20 mm | -40 C | 105 ░C | DV/DT High Frequency High Pulse Switching | 0.709 in | 18 mm | Through Hole |
