PPPC311 Series

Catalog

CONN HDR 31POS 0.1 GOLD SMD

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Material	Connector Type	Contact Type	Number of Rows	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions [custom]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]

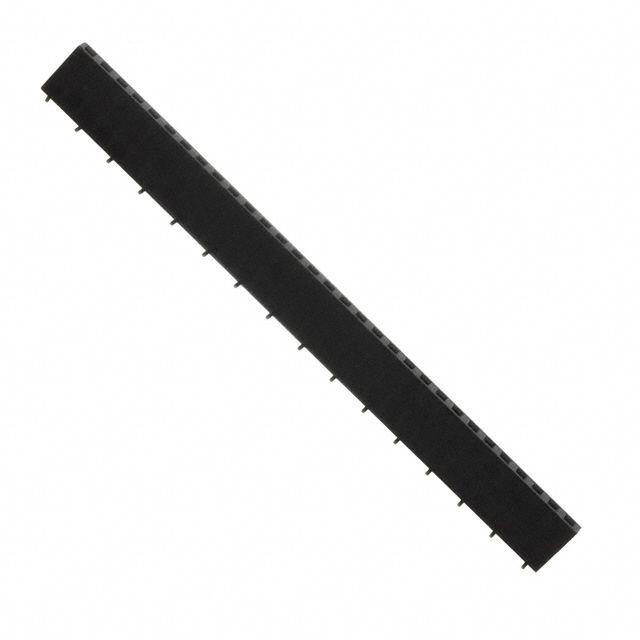

Sullins Connector Solutions PPPC311KFXC	Polyester	Square	Flash	Phosphor Bronze	Header Top or Bottom Entry	Female Socket	1	Gold	0.1 "	2.54 mm	Push-Pull	Black	All	Flash	3 A	250 V	UL94 V-0	Solder	Gold	-40 C	105 ░C	Surface Mount	31	0.28 in	7.1 mm

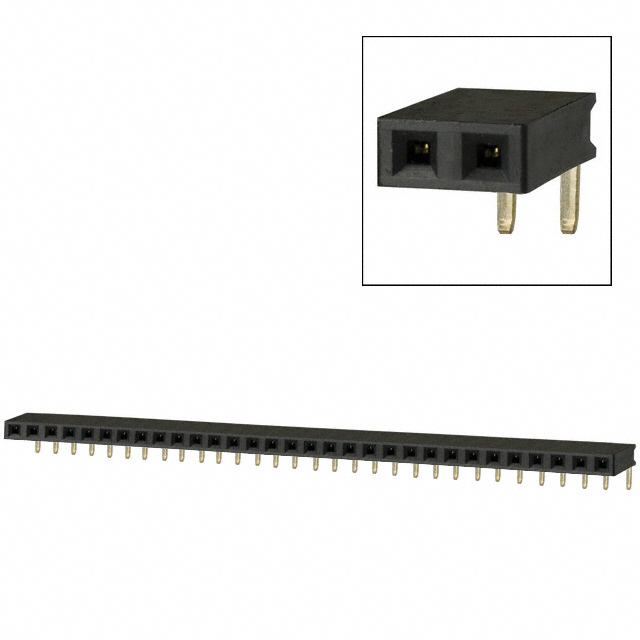

Sullins Connector Solutions PPPC311LGBN-RC	Polyester	Square	Flash	Phosphor Bronze	Header	Female Socket	1	Gold	0.1 "	2.54 mm	Push-Pull	Black	All	Flash	3 A	250 V	UL94 V-0	Solder	Gold	-40 C	105 ░C	Right Angle Through Hole	31	0.1 in	2.54 mm	0.124 in	3.15 mm

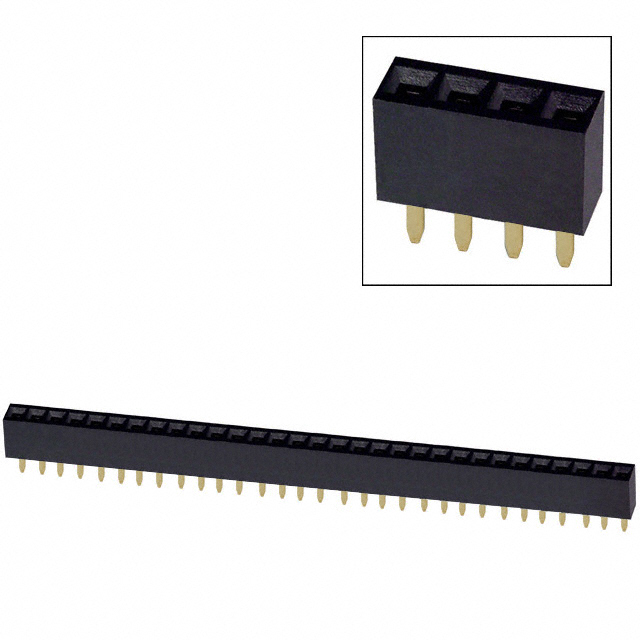

Sullins Connector Solutions PPPC311LFBN-RC	Polyester	Square	Flash	Phosphor Bronze	Header	Female Socket	1	Gold	0.1 "	2.54 mm	Push-Pull	Black	All	Flash	3 A	250 V	UL94 V-0	Solder	Gold	-40 C	105 ░C	Through Hole	31	0.335 "	8.51 mm			0.126 "	3.2 mm
