CGS 3430 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

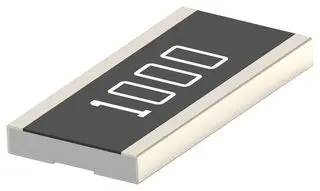

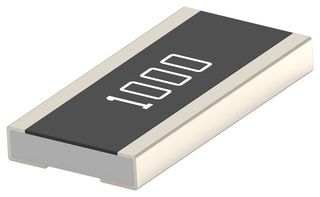

SMD CHIP RESISTOR, 7.5 KOHM, ± 1%, 3 W, 1225 WIDE [3264 METRIC], THICK FILM, HIGH POWER
| Part | Features | Number of Terminations [custom] | Supplier Device Package | Ratings | Power (Watts) | Height - Seated (Max) [Max] | Height - Seated (Max) | Tolerance | Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Composition | Package / Case | Temperature Coefficient | Supplier Device Package | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | 1225 | AEC-Q200 | 3 W | 0.031 in | 0.8 mm | 1 % | 7.5 kOhms | 155 C | -55 C | 6.4 mm | 0.252 in | 0.126 in | 3.2 mm | Thick Film | 1225 Wide 2512 (6432 Metric) | 100 ppm/°C | ||||||
TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | AEC-Q200 | 1.5 W | 0.026 in | 1 % | 1.3 Ohms | 155 C | -55 C | 3 mm | 1.55 mm | Thick Film | 0612 Wide 1206 (3216 Metric) | 100 ppm/°C | 0612 | 0.65 mm | 0.118 in | 0.061 in | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | AEC-Q200 | 1 W | 0.026 in | 1 % | 1.5 Ohms | 155 C | -55 C | 2 mm | 1.25 mm | Thick Film | 0508 Wide 0805 (2012 Metric) | 150 ppm/°C | 0508 | 0.65 mm | 0.079 in | 0.049 in | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | AEC-Q200 | 2 W | 1 % | 820 Ohms | 155 C | -55 C | 5 mm | 2.45 mm | Thick Film | 1020 Wide 2010 (5025 Metric) | 100 ppm/°C | 1020 | 0.197 " | 0.096 in | 0.03 " | 0.75 mm | ||||||
TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | AEC-Q200 | 2 W | 1 % | 150000 Ohms | 155 C | -55 C | 5 mm | 2.45 mm | Thick Film | 1020 Wide 2010 (5025 Metric) | 100 ppm/°C | 1020 | 0.197 " | 0.096 in | 0.03 " | 0.75 mm | ||||||
TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | 1225 | AEC-Q200 | 3 W | 0.031 in | 0.8 mm | 1 % | 11 kOhms | 155 C | -55 C | 6.4 mm | 0.252 in | 0.126 in | 3.2 mm | Thick Film | 1225 Wide 2512 (6432 Metric) | 100 ppm/°C | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | AEC-Q200 | 2 W | 1 % | 6.8 kOhms | 155 C | -55 C | 5 mm | 2.45 mm | Thick Film | 1020 Wide 2010 (5025 Metric) | 100 ppm/°C | 1020 | 0.197 " | 0.096 in | 0.03 " | 0.75 mm | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | 1225 | AEC-Q200 | 3 W | 0.031 in | 0.8 mm | 1 % | 3 kOhms | 155 C | -55 C | 6.4 mm | 0.252 in | 0.126 in | 3.2 mm | Thick Film | 1225 Wide 2512 (6432 Metric) | 100 ppm/°C | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | AEC-Q200 | 1 W | 0.026 in | 1 % | 470 kOhms | 155 C | -55 C | 2 mm | 1.25 mm | Thick Film | 0508 Wide 0805 (2012 Metric) | 100 ppm/°C | 0508 | 0.65 mm | 0.079 in | 0.049 in | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 | 2 | AEC-Q200 | 1.5 W | 0.026 in | 1 % | 62 kOhms | 155 C | -55 C | 3 mm | 1.55 mm | Thick Film | 0612 Wide 1206 (3216 Metric) | 100 ppm/°C | 0612 | 0.65 mm | 0.118 in | 0.061 in |
