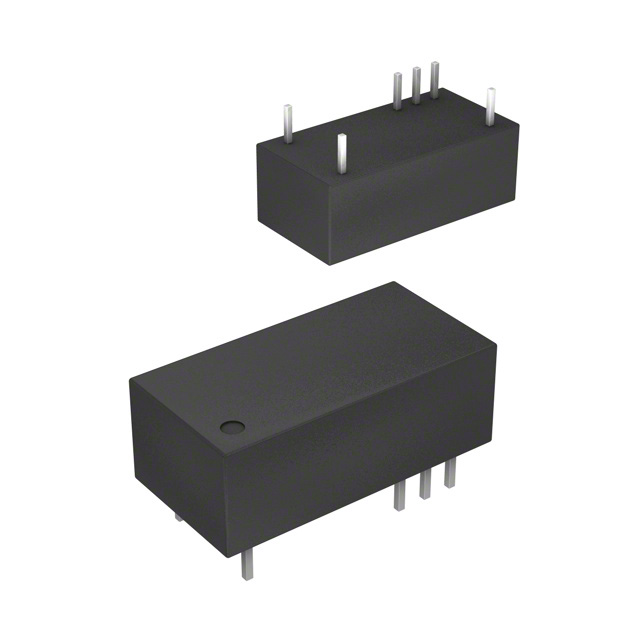

RJZ Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 3KV UNREG 15VIN 5VOUT

...

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Efficiency	Voltage - Output 1	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Applications
Recom Power RJZ-1505S/P	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	13.5 V	16.5 V	14-DIP Module 6 Leads	3000 V	85 %	5 V	400 mA	Through Hole	85 °C	-40 C	Isolated Module	ITE (Commercial) Medical

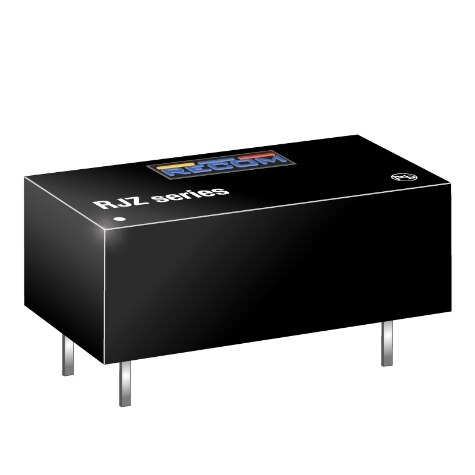

Recom Power RJZ-1524S	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	13.5 V	16.5 V	14-DIP Module 6 Leads	3000 V	85 %	24 V	83 mA	Through Hole	85 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-0515S/P	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	4.5 V	5.5 V	14-DIP Module 6 Leads	3000 V	85 %	15 V	133 mA	Through Hole	85 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-1224S/H	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	10.8 V	13.2 V	14-DIP Module 6 Leads	4000 V	85 %	24 V	83 mA	Through Hole	85 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-3.309S/P	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	2.97 V	3.63 V	14-DIP Module 6 Leads	3000 V	84 %	9 V	222 mA	Through Hole	90 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-2409S/H	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	21.6 V	26.4 V	14-DIP Module 6 Leads	4000 V	84 %	9 V	222 mA	Through Hole	85 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-3.315S/H	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	2.97 V	3.63 V	14-DIP Module 6 Leads	4000 V	85 %	15 V	133 mA	Through Hole	90 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-3.33.3S/P	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	2.97 V	3.63 V	14-DIP Module 6 Leads	3000 V	75 %	3.3 V	606 mA	Through Hole	90 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-0912S/H	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	8.1 V	9.9 V	14-DIP Module 6 Leads	4000 V	85 %	12 V	166 mA	Through Hole	85 °C	-40 C	Isolated Module	ITE (Commercial) Medical
Recom Power RJZ-1224S/P	2 W	7.1 mm	0.78 "	0.28 "	10 mm	19.7 mm	0.39 in	1	SCP	10.8 V	13.2 V	14-DIP Module 6 Leads	3000 V	85 %	24 V	83 mA	Through Hole	85 °C	-40 C	Isolated Module	ITE (Commercial) Medical
