MC-07-130 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER PIEZO 35.81MM PNL MNT
| Part | Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Termination | Termination | Termination | Input Type | Port Location | Voltage Range [Min] | Voltage Range [Max] | Approval Agency | Technology | Operating Mode | Ingress Protection | Sound Pressure Level (SPL) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Supply [Min] | Current - Supply [Max] | Driver Circuitry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

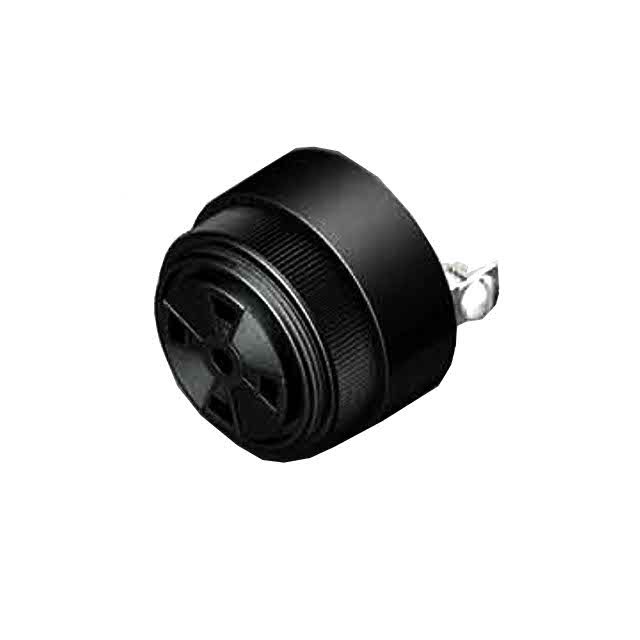

 Floyd Bell Inc | 2.9 kHz | 1.41 in | 35.81 mm | Panel Mount | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | DC | Top | 3 V | 30 V | UL UR | Piezo | Single Tone | IP68 - Dust Tight Waterproof | 93 dB | 0.99 in | 25.15 mm | 4 mA | 35 mA | Indicator Internally Driven |

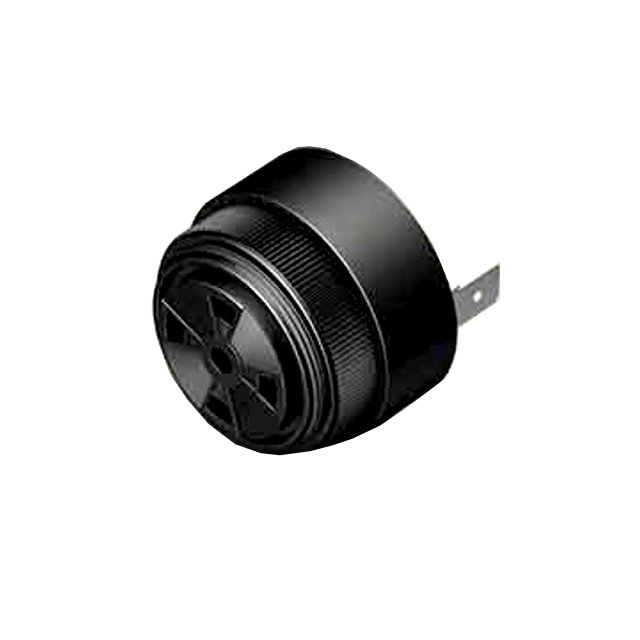

 Floyd Bell Inc | 2.9 kHz | 1.41 in | 35.81 mm | Panel Mount | 0.25 " | Quick Connect Tab | 6.35 mm | DC | Top | 3 V | 30 V | UL UR | Piezo | Single Tone | IP68 - Dust Tight Waterproof | 93 dB | 0.99 in | 25.15 mm | 4 mA | 35 mA | Indicator Internally Driven |

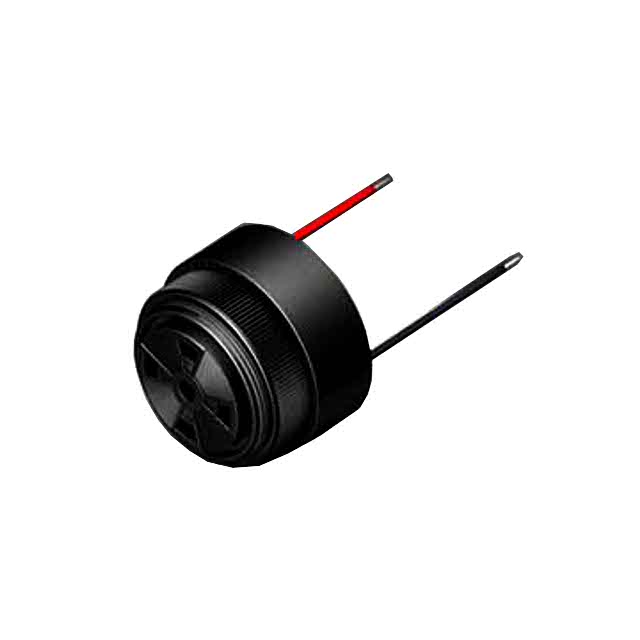

 Floyd Bell Inc | 2.9 kHz | 1.41 in | 35.81 mm | Panel Mount | Wire Leads | DC | Top | 3 V | 30 V | UL UR | Piezo | Single Tone | IP68 - Dust Tight Waterproof | 93 dB | 0.99 in | 25.15 mm | 4 mA | 35 mA | Indicator Internally Driven |
