053647 Series

Manufacturer: Molex

Catalog

CONN BOARD TO BOARD HDR 160 POS 0.635MM SOLDER ST SMD SLIMSTACK T/R

Part	Height Above Board	Height Above Board	Mated Stacking Heights	Contact Finish	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Number of Positions
Molex 0536471674	0.275 in	6.99 mm	8 mm 14 mm	Gold	Surface Mount	Board Guide Solder Retention	10 Áin	0.25 Ám	0.64 mm	0.025 in	Outer Shroud Contacts Plug	2	160

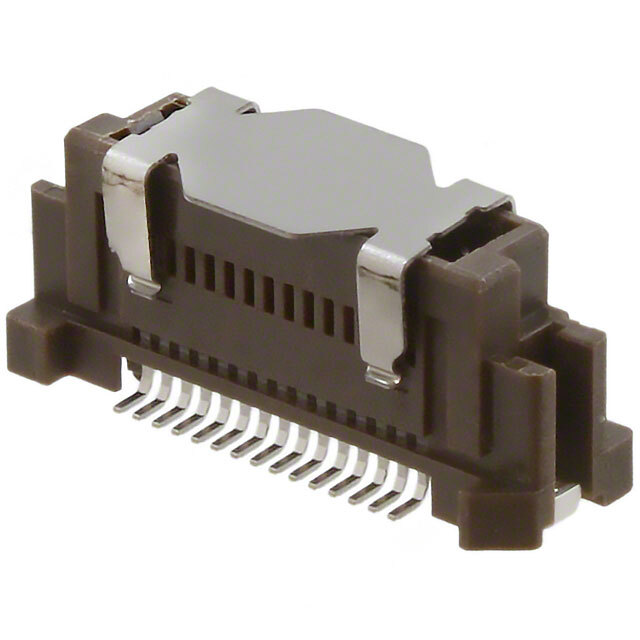

Molex 0536470374	0.275 in	6.99 mm	8 mm 14 mm	Gold	Surface Mount	Board Guide Solder Retention	10 Áin	0.25 Ám	0.64 mm	0.025 in	Outer Shroud Contacts Plug	2	30

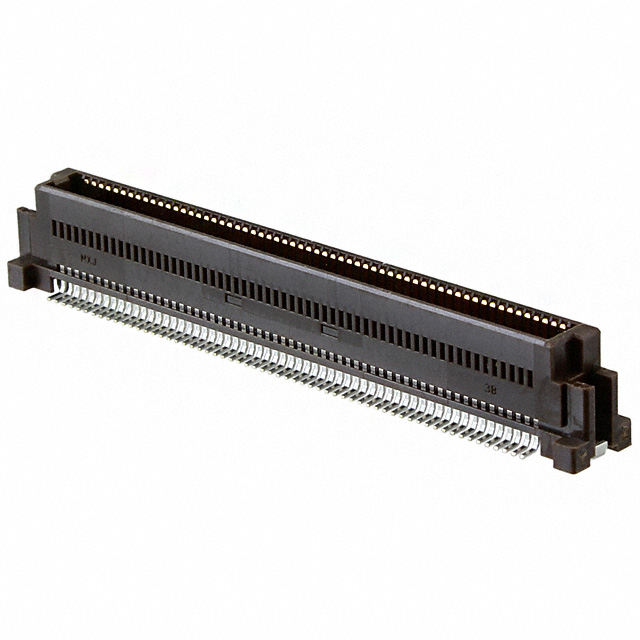

Molex 0536471274	0.275 in	6.99 mm	8 mm 14 mm	Gold	Surface Mount	Board Guide Solder Retention	10 Áin	0.25 Ám	0.64 mm	0.025 in	Outer Shroud Contacts Plug	2	120

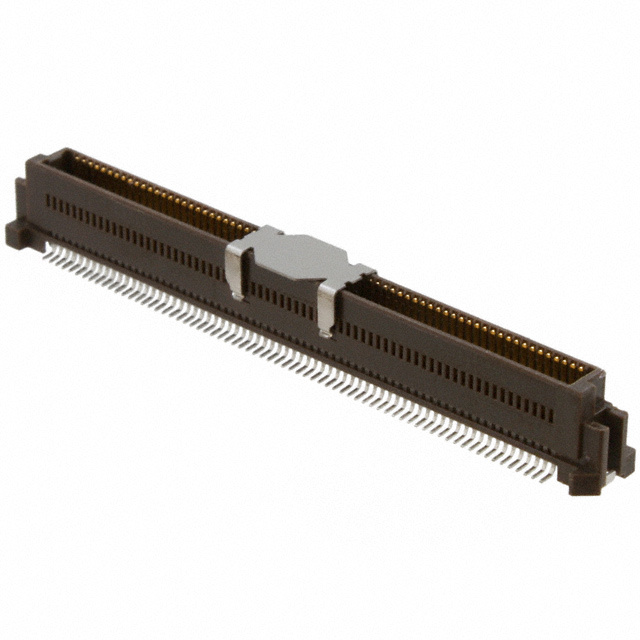

Molex 0536471474	0.275 in	6.99 mm	8 mm 14 mm	Gold	Surface Mount	Board Guide Solder Retention	10 Áin	0.25 Ám	0.64 mm	0.025 in	Outer Shroud Contacts Plug	2	140
