D2822 Series
Manufacturer: Harwin Inc.
Beta
⌘K

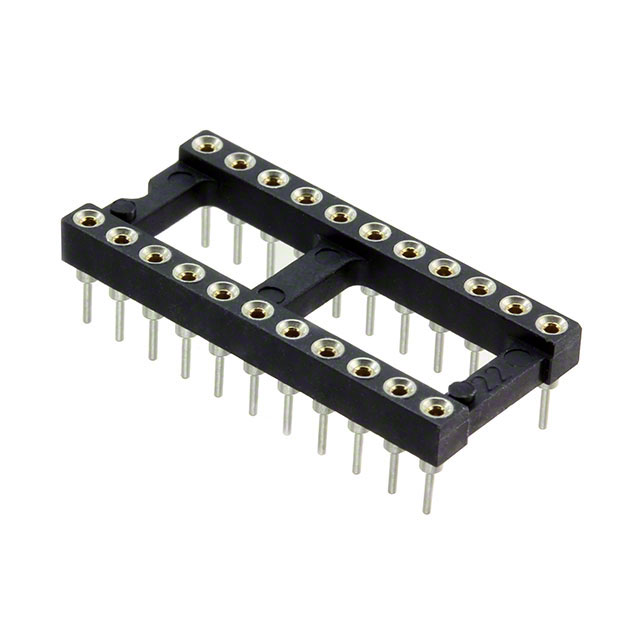

CONN IC DIP SOCKET 22POS GOLD
| Part | Termination Post Length [x] | Termination Post Length [x] | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Housing Material | Contact Material - Post [custom] | Contact Material - Mating | Pitch - Post | Pitch - Post | Features | Type | Type | Contact Finish - Mating | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 3.2 mm | 0.126 in | 10 mOhm | 1 A | UL94 V-0 | Tin | 5 µm | 196.9 µin | Solder | Through Hole | -55 C | 125 °C | 0.1 " | 2.54 mm | Flash | Plastic | Brass | Beryllium Copper | 0.1 in | 2.54 mm | Open Frame | 0.4 in | DIP | Gold | 11 | 22 | 2 |
