QS3VH862 Series

QuickSwitch Products 2.5V/3.3V 10-Bit High and Low Enable, High Bandwidth Bus Switch

Manufacturer: Renesas Electronics Corporation

Catalog

QuickSwitch Products 2.5V/3.3V 10-Bit High and Low Enable, High Bandwidth Bus Switch

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case [custom]	Mounting Type	Independent Circuits	Type	Voltage Supply Source	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Circuit	Supplier Device Package
Renesas Electronics Corporation QS3VH862QG8	2.3 V	3.6 V	24-SSOP	0.154 " 3.9 mm	Surface Mount	1	Bus Switch	Single Supply	85 °C	-40 °C	10	1:1	24-QSOP

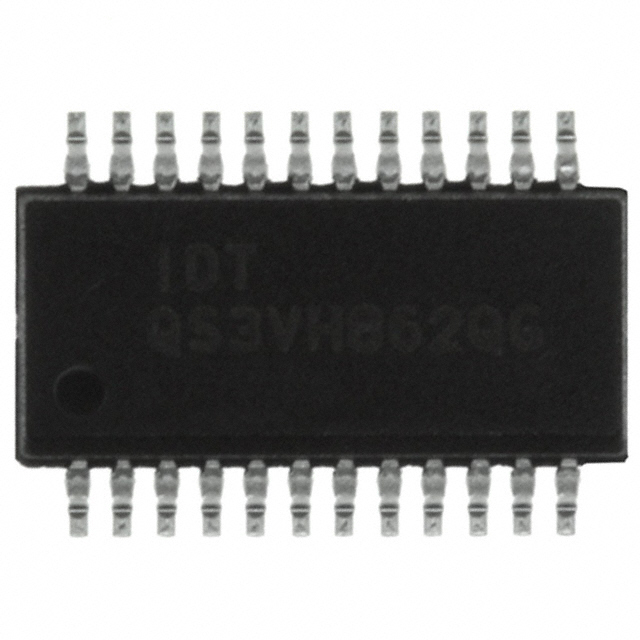

Renesas Electronics Corporation QS3VH862QG	2.3 V	3.6 V	24-SSOP	0.154 " 3.9 mm	Surface Mount	1	Bus Switch	Single Supply	85 °C	-40 °C	10	1:1	24-QSOP

Catalog

QuickSwitch Products 2.5V/3.3V 10-Bit High and Low Enable, High Bandwidth Bus Switch

Description

The QS3VH862 HotSwitch with 10-bit active high and low enable is a high bandwidth bus switch with very low ON-resistance, resulting in under 250ps propagation delay through the switch. The combination of near-zero propagation delay, high OFF impedance, and overvoltage tolerance makes the QS3VH862 ideal for high-performance communications applications. The QS3VH862 operates from -40 °C to +85 °C.
