091I Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 9.5"L X 6.34"W

Part	Weight [custom]	Weight [custom]	Size / Dimension	Size / Dimension	Material Flammability Rating	Color	Container Type	Material	Features	Area (L x W)	Area (L x W)	Design	Thickness	Thickness	Height [z]	Height [z]	Ratings

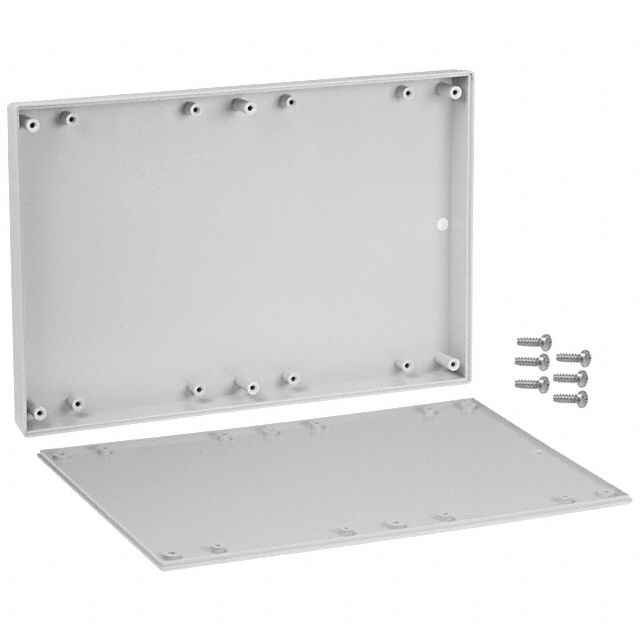

Serpac 091I,GY	236.78 g	0.522 lb	6.34 in 9.5 in	161.04 mm 241.3 mm	UL94 HB	Gray	Box	ABS Plastic	PCB Supports	60.2 in²	388 cm²	Cover Included Hand Held	2.54 mm	0.1 in	22.86 mm	0.9 in	IP40 NEMA 1
Serpac 091I,BK	236.78 g	0.522 lb	6.34 in 9.5 in	161.04 mm 241.3 mm	UL94 HB	Black	Box	ABS Plastic	PCB Supports	60.2 in²	388 cm²	Cover Included Hand Held	2.54 mm	0.1 in	22.86 mm	0.9 in	IP40 NEMA 1

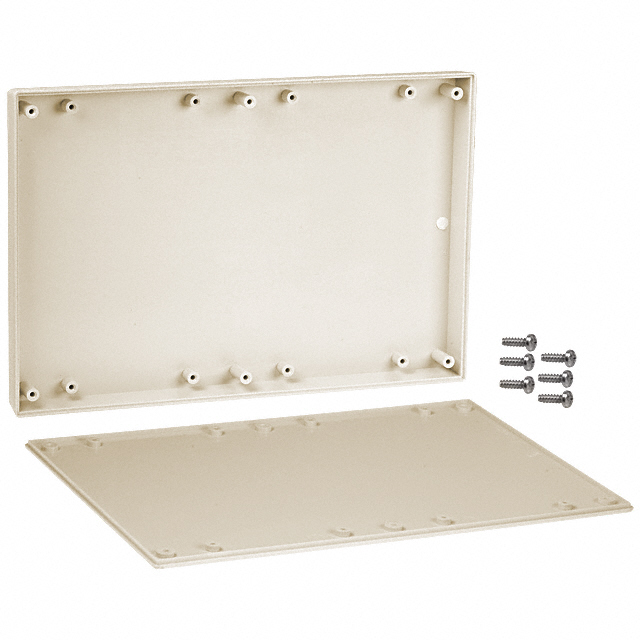

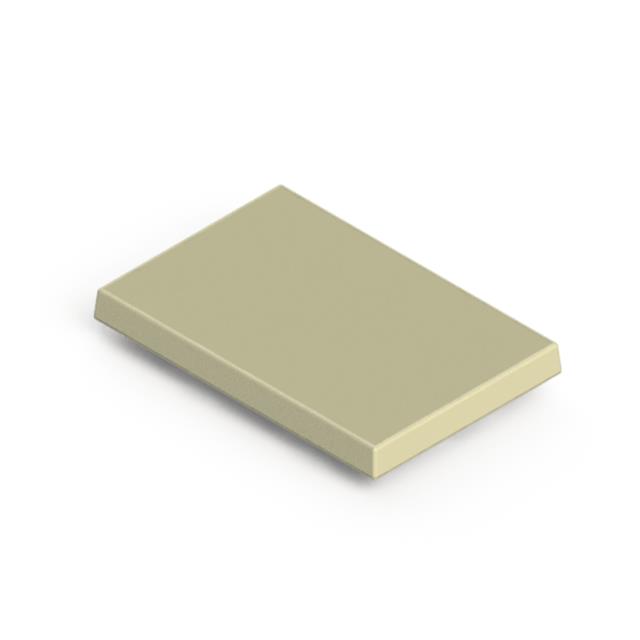

Serpac 091I,AL	236.78 g	0.522 lb	6.34 in 9.5 in	161.04 mm 241.3 mm	UL94 HB	Almond	Box	ABS Plastic	PCB Supports	60.2 in²	388 cm²	Cover Included Hand Held	2.54 mm	0.1 in	22.86 mm	0.9 in	IP40 NEMA 1
