30-1 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

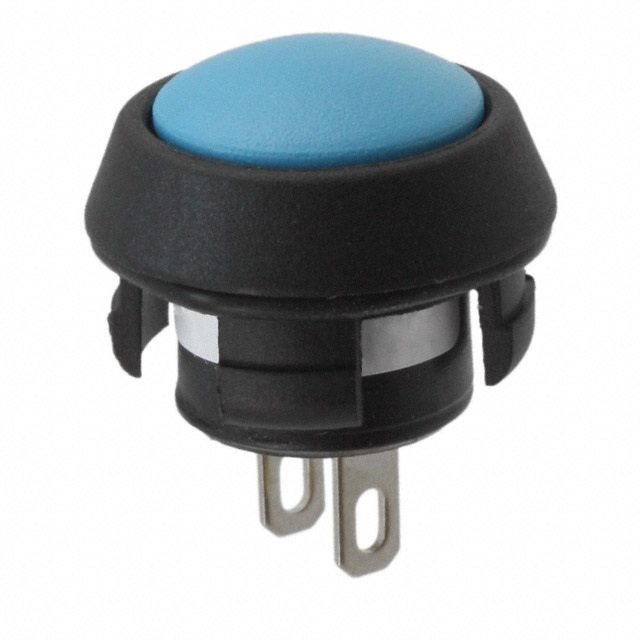

SWITCH PUSH SPST-NO 0.15A 24V
| Part | Electrical Life | Mechanical Life | Type | Voltage Rating - DC | Switch Function | Circuit | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Features | Termination Style | Color - Actuator/Cap | Actuator Marking | Actuator Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 500000 Cycles | 500000 Cycles | Standard | 24 V | Off-Mom | SPST-NO | 15.2 mm | 150 mA | 80 °C | -40 C | Sealed - Fully | Solder Lug | Blue | No Marking | Button Round | Panel Mount Snap-In |
