3255 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN TERM RECT TONG 3/0 AWG
| Part | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Style | Tab Thickness | Tab Thickness | Contact Finish | Length - Overall [x] | Length - Overall [x] | Insulation | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Mounting Type | Terminal Type | Termination | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Stud/Tab Size | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 27.43 mm | 1.08 in | No Stud Hole | 3.05 mm | 0.12 in | Tin | 102.11 mm | 4.02 " | Non-Insulated | 18.34 mm | 0.722 in | Copper | Free Hanging (In-Line) | Rectangular Tongue | Barrel Crimp | 0.576 in | 14.63 mm | ||||

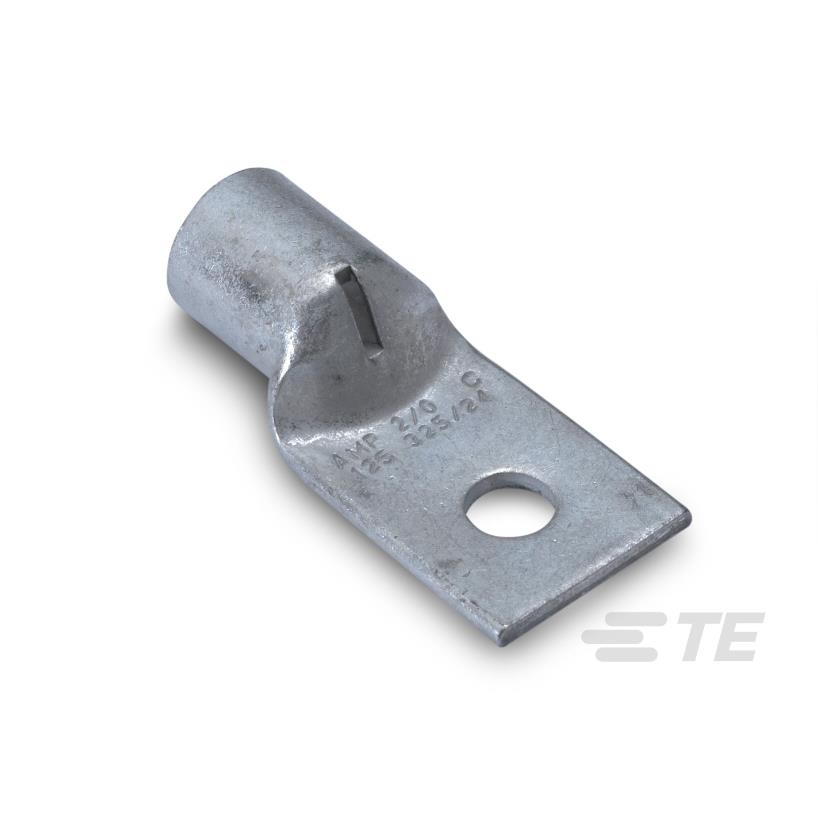

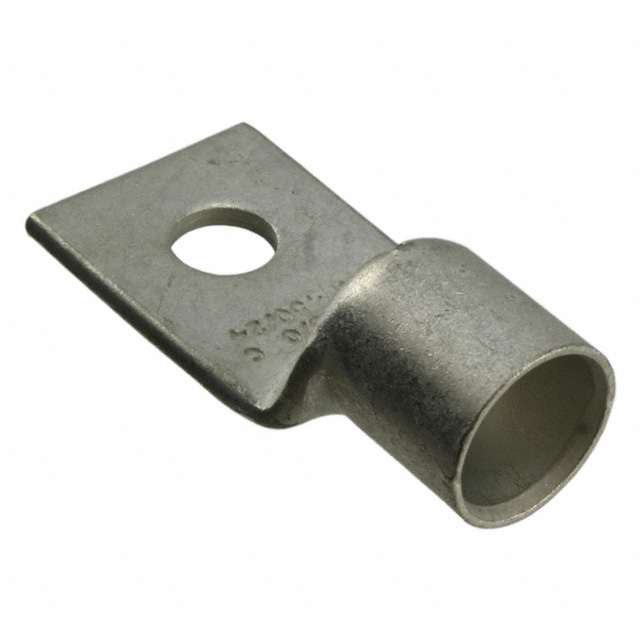

 TE Connectivity Raychem Cable Protection | 27.43 mm | 1.08 in | Single Stud Hole | 3.05 mm | 0.12 in | Tin | Non-Insulated | 18.34 mm | 0.722 in | Copper | Free Hanging (In-Line) | Standard | Barrel Crimp | 0.576 in | 14.63 mm | 9.91 mm | 0.39 in | 3/8 Stud | |||
 TE Connectivity Raychem Cable Protection | 27.43 mm | 1.08 in | Single Stud Hole | 3.05 mm | 0.12 in | Tin | Non-Insulated | 18.34 mm | 0.722 in | Copper | Free Hanging (In-Line) | Standard | Barrel Crimp | 0.576 in | 14.63 mm | 8.33 mm | 0.328 in | 0.3125 Stud |
