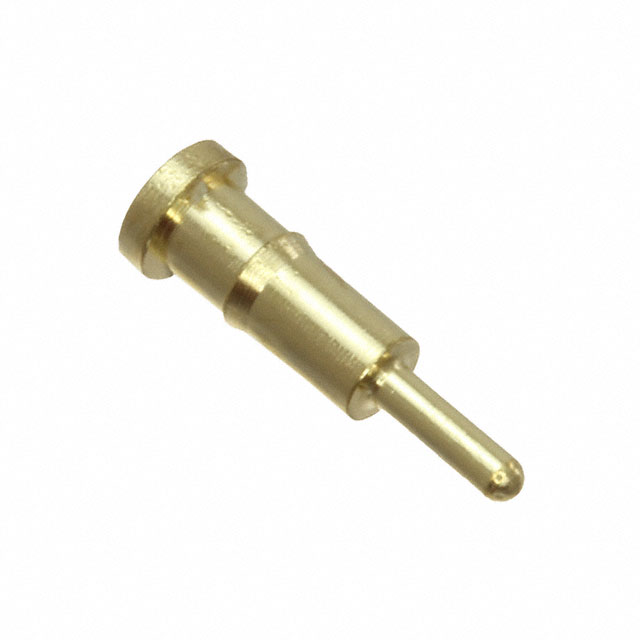

0336-0 Series

Catalog

CONN PIN RCPT .032-.046 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0336-0-15-15-34-27-04-0	-55 C	125 °C	1.02 mm	0.04 "	Beryllium Copper	0.119 in	3.02 mm	Press-Fit	Gold	1.63 mm	0.064 in	5.21 mm	0.205 in	30 Áin	0.76 Ám	2.26 mm	0.089 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail	9.78 mm	0.385 in
Mill-Max Manufacturing Corp. 0336-0-15-80-34-14-04-0	-55 C	125 °C	1.02 mm	0.04 "	Beryllium Copper	0.119 in	3.02 mm	Press-Fit	Gold	1.63 mm	0.064 in	5.21 mm	0.205 in	10 Áin	0.25 Ám	2.26 mm	0.089 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail	9.78 mm	0.385 in

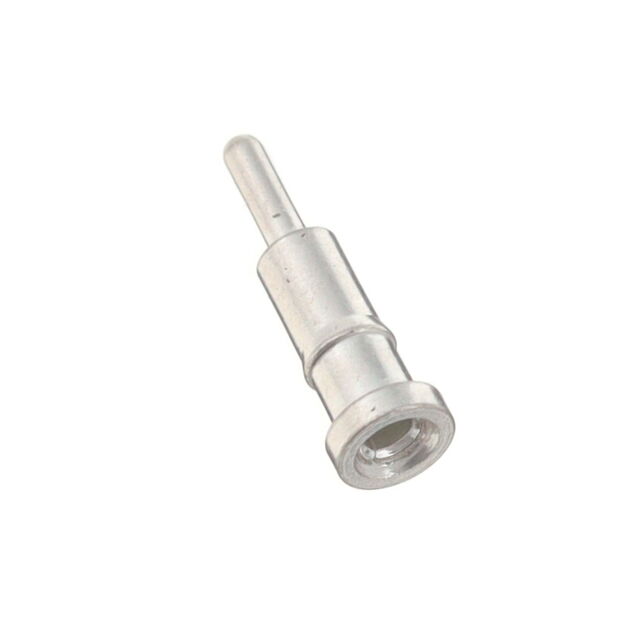

Mill-Max Manufacturing Corp. 0336-0-15-01-34-01-04-0	-55 C	125 °C	1.02 mm	0.04 "	Beryllium Copper	0.119 in	3.02 mm	Press-Fit	Tin-Lead	1.63 mm	0.064 in	5.21 mm	0.205 in	200 Áin	5.08 Ám	2.26 mm	0.089 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail	9.78 mm	0.385 in
Mill-Max Manufacturing Corp. 0336-0-15-15-34-14-04-0	-55 C	125 °C	1.02 mm	0.04 "	Beryllium Copper	0.119 in	3.02 mm	Press-Fit	Gold	1.63 mm	0.064 in	5.21 mm	0.205 in	10 Áin	0.25 Ám	2.26 mm	0.089 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail	9.78 mm	0.385 in
