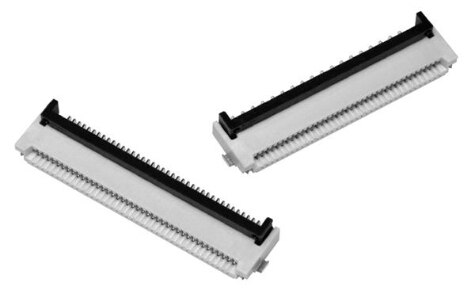

XF3M Series

FFC & FPC Connectors FPC Connector

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

FFC & FPC Connectors FPC Connector

Catalog

FFC & FPC Connectors FPC Connector

Part	FFC, FCB Thickness	Actuator Material	Features	Locking Feature	Number of Positions	Housing Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Housing Material	Actuator Color	Termination	Mating Cycles	Current Rating (Amps)	Contact Finish Thickness	Voltage Rating	Pitch [x]	Pitch [x]	Cable End Type	Flat Flex Type	Contact Material	Material Flammability Rating	Height Above Board	Height Above Board	Contact Finish

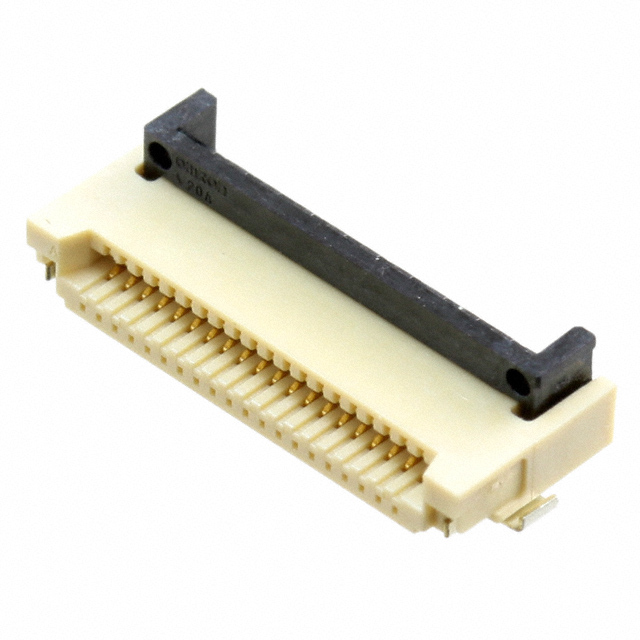

Omron Electronics Inc-EMC Div XF3M-2015-1B	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	20	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold

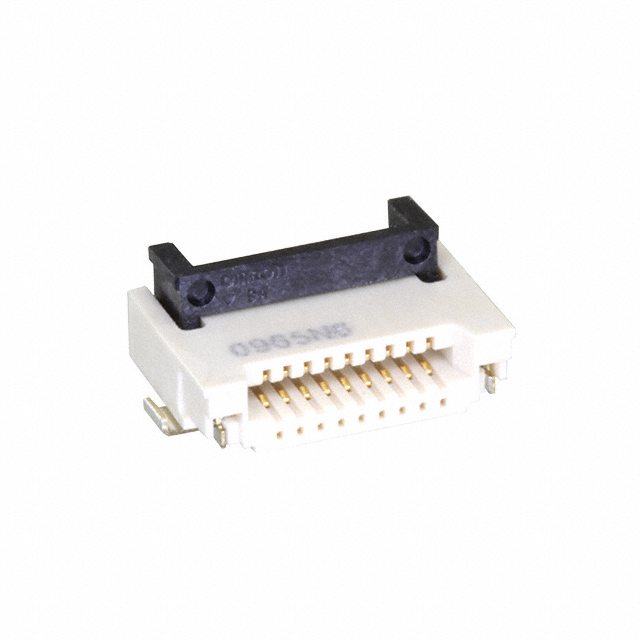

Omron Electronics Inc-EMC Div XF3M(1)-1815-1B-R100	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	18	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	1 mm	0.039 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold
Omron Electronics Inc-EMC Div XF3M-2415-1B	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	24	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold

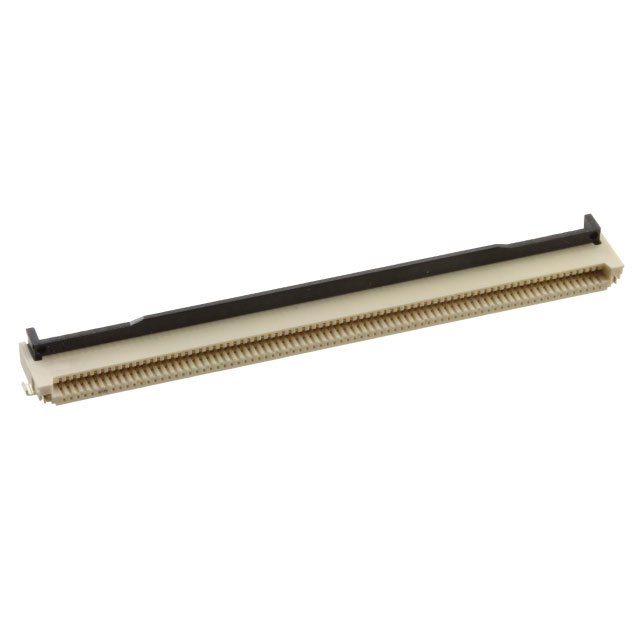

Omron Electronics Inc-EMC Div XF3M-8015-1BE-R100	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	80	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold

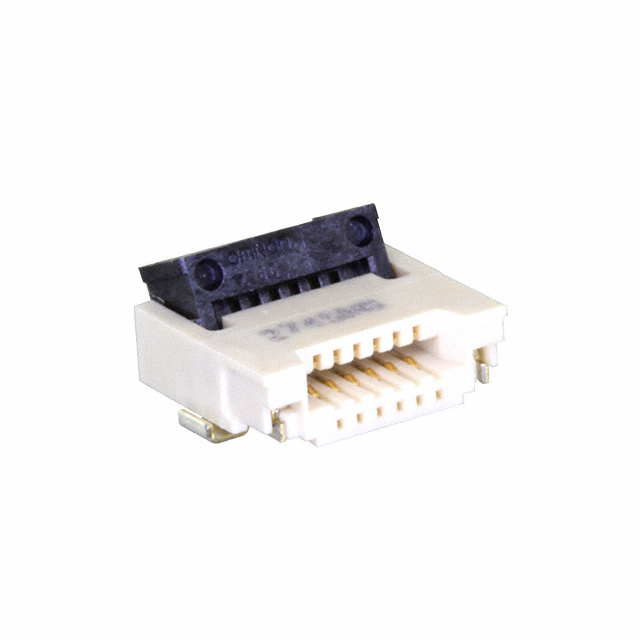

Omron Electronics Inc-EMC Div XF3M-0615-1B	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	6	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold

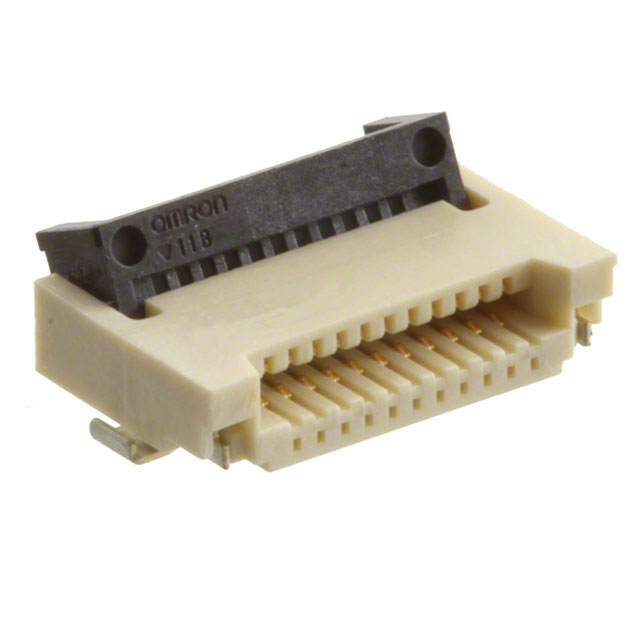

Omron Electronics Inc-EMC Div XF3M-1115-1B	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	11	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold

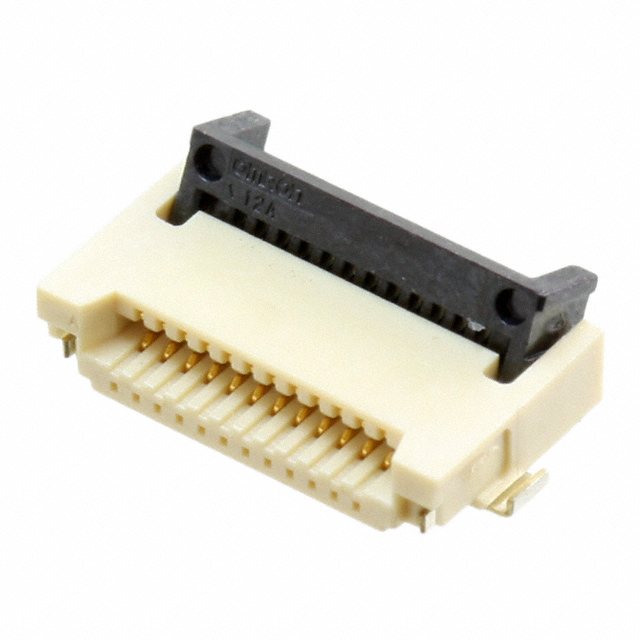

Omron Electronics Inc-EMC Div XF3M-1215-1B	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	12	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold
Omron Electronics Inc-EMC Div XF3M-0915-1D	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	9	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Tin

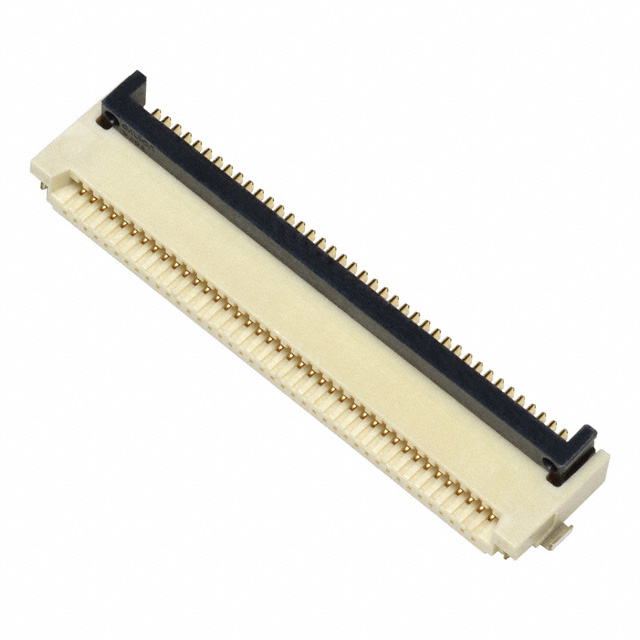

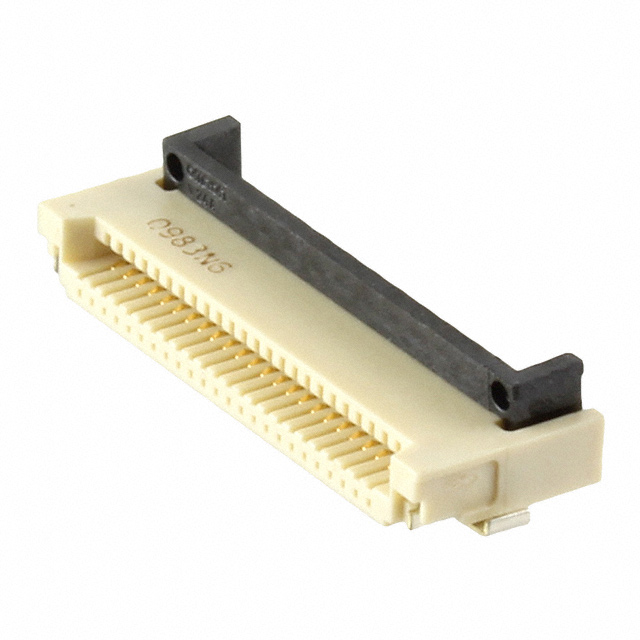

Omron Electronics Inc-EMC Div XF3M-4015-1B	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	40	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	0.5 mm	0.02 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold

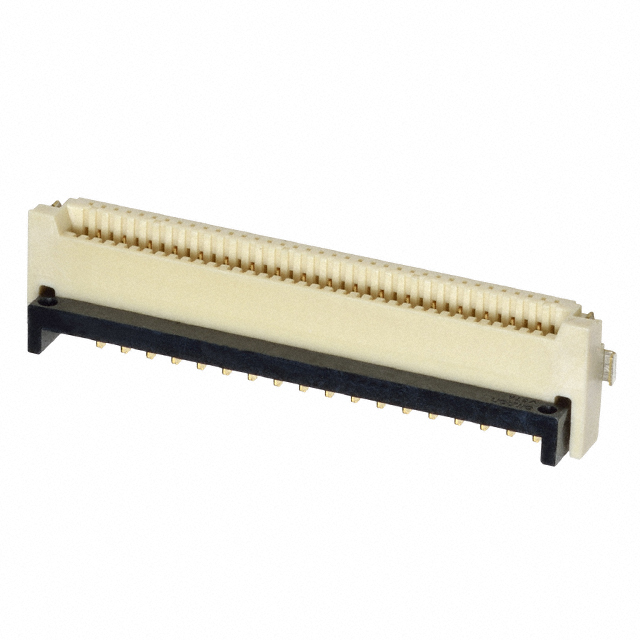

Omron Electronics Inc-EMC Div XF3M(1)-1815-1B	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Solder Retention	Backlock Rotary Lock	18	Natural	Surface Mount Right Angle	-30 ░C	85 °C	Contacts Top and Bottom	Liquid Crystal Polymer (LCP) Halogen Free	Black	Solder	20	0.5 A	Flash	50 V	1 mm	0.039 in	Tapered	FFC FPC	Copper Alloy	UL94 V-0	0.079 in	2 mm	Gold
