770974 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

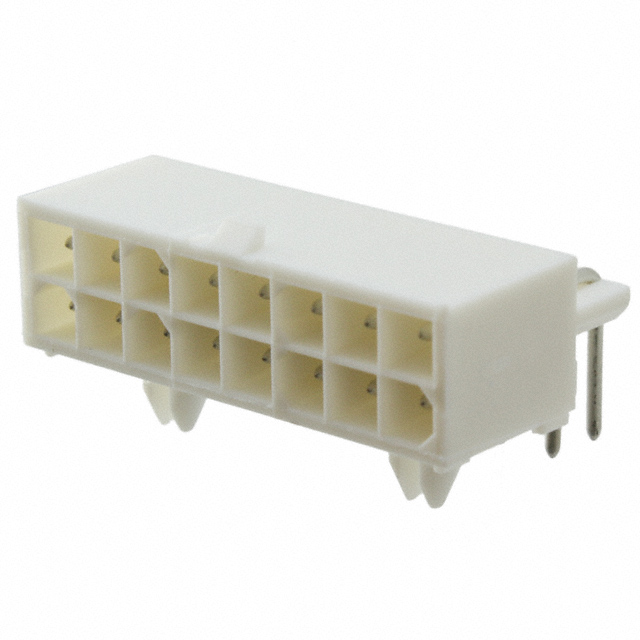

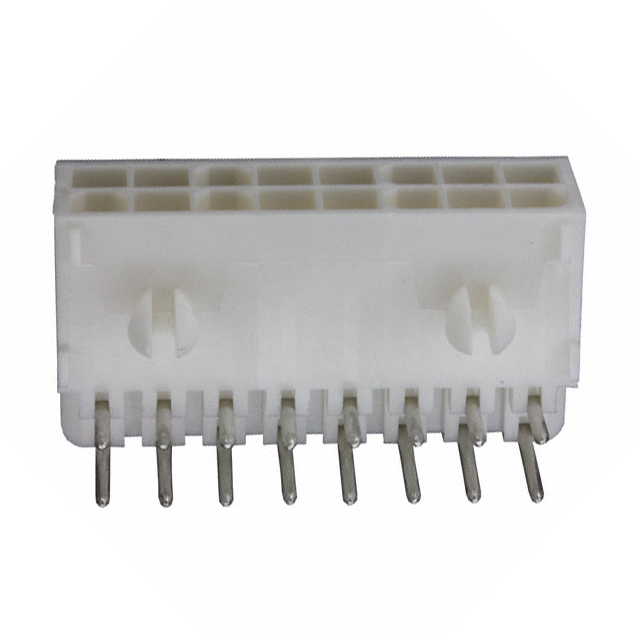

CONN HEADER R/A 16POS 4.14MM
| Part | Applications | Contact Finish Thickness - Post | Material Flammability Rating | Shrouding | Number of Rows [custom] | Number of Positions Loaded | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Current Rating (Amps) | Contact Material | Style | Insulation Material | Pitch - Mating | Pitch - Mating | Voltage Rating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Shape | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Finish - Post | Number of Positions | Contact Finish - Mating | Termination | Contact Length - Post | Contact Length - Post | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | UL94 V-0 | Shrouded - 4 Wall | 2 | All | Male Pin | 4.14 mm | 0.163 in | Right Angle Through Hole | Varies by Wire Gauge | Brass | Board to Cable/Wire | Nylon Polyamide (PA) | 0.163 in | 4.14 mm | 600 VAC | Board Lock | -20 ░C | 105 ░C | White | Circular | 9.8 mm | 0.386 in | 0.76 Ám | 30 Áin | Header | Tin-Lead | 16 | Gold | Solder | 3.68 mm | 0.145 in | Locking Ramp |
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | UL94 V-0 | Shrouded - 4 Wall | 2 | All | Male Pin | 4.14 mm | 0.163 in | Right Angle Through Hole | Varies by Wire Gauge | Brass | Board to Cable/Wire | Nylon Polyamide (PA) | 0.163 in | 4.14 mm | 600 VAC | Board Lock | -20 ░C | 85 °C | White | Circular | 9.8 mm | 0.386 in | 3.81 Ám | 150 Áin | Header | Tin-Lead | 16 | Tin-Lead | Solder | 3.68 mm | 0.145 in | Locking Ramp |
