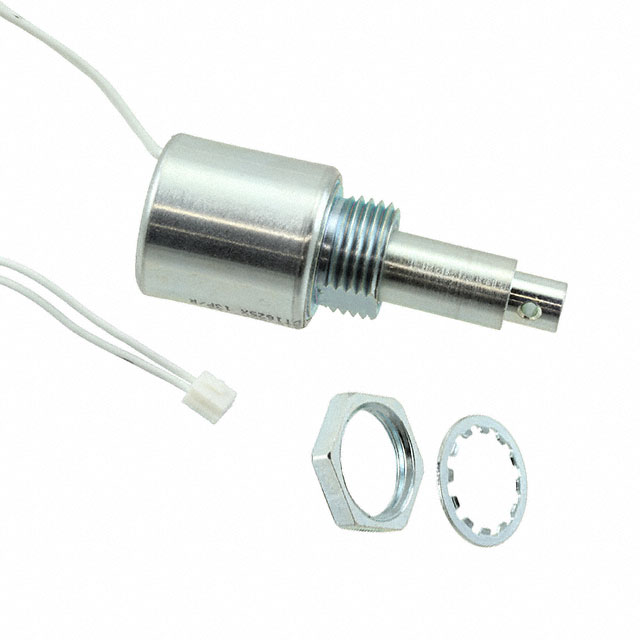

DSTL-0829 Series
Manufacturer: Delta Electronics
Beta
⌘K
SOLENOID PULL CONTINUOUS 5V
| Part | Mounting Type | Duty Cycle | Weight | Weight | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Bushing Thread | DC Resistance (DCR) | Duty Cycle | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Type | Stroke Length | Stroke Length | Voltage - Rated | Technology | Shaft Detail | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Chassis Mount Panel Mount | 10 % | 102.06 g | 0.225 lb | 24.4 mm 25.4 mm | 0.961 in 1 " | 29 mm | 1.142 in | 3/4-16 UNF-2A | 360 mOhm | Intermittent | 28.96 mm | 1.14 in | 70 W | Closed Frame (Pull) Tubular | 0.5 in | 12.7 mm | 5 V | Electromechanical | Clevis | 0.307 in | 7.8 mm |
Delta Electronics | Chassis Mount Panel Mount | 10 % | 102.06 g | 0.225 lb | 24.4 mm 25.4 mm | 0.961 in 1 " | 29 mm | 1.142 in | 3/4-16 UNF-2A | 7.5 Ohm | Intermittent | 28.96 mm | 1.14 in | 76 W | Closed Frame (Pull) Tubular | 0.5 in | 12.7 mm | 24 VDC | Electromechanical | Clevis | 0.307 in | 7.8 mm |
