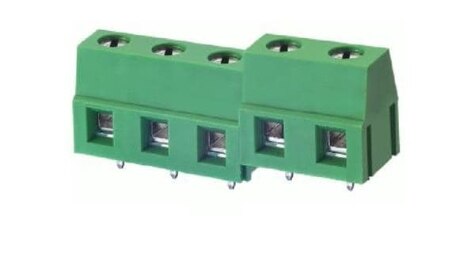

Fixed Terminal Blocks 10P EM2507 Series
Fixed Terminal Blocks 10P EM2507 Series
| Part | Screw Thread | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Torque - Screw | Torque - Screw | Contact Material - Plating | Housing Material | Current | Number of Levels | Mating Orientation | Voltage | Positions Per Level | Features | Wire Termination | Pitch | Pitch | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | M2.6 | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Nickel Plated | 0.56 Nm | 5 Lb-In | Brass - Tin Plated | Thermoplastic | 16 A | 1 | Horizontal with Board | 300 VDC | 10 | Interlocking (Side) | Screw - Rising Cage Clamp | 0.295 in | 7.5 mm | Through Hole | 12 AWG | 26 AWG | Green |
