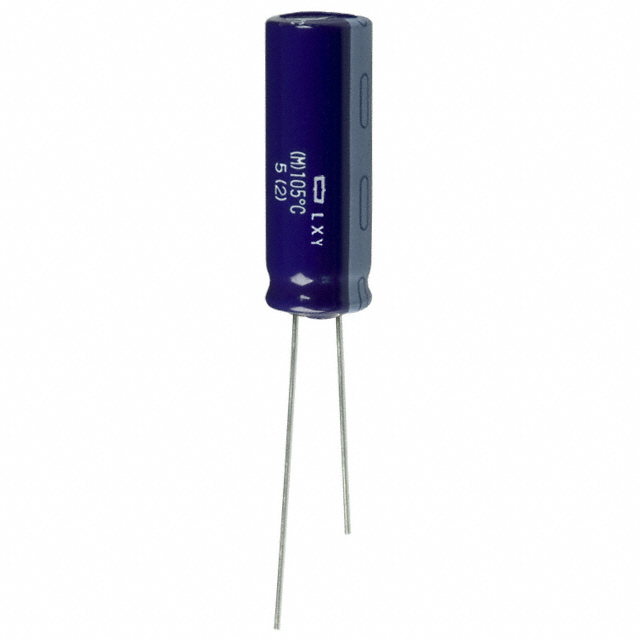

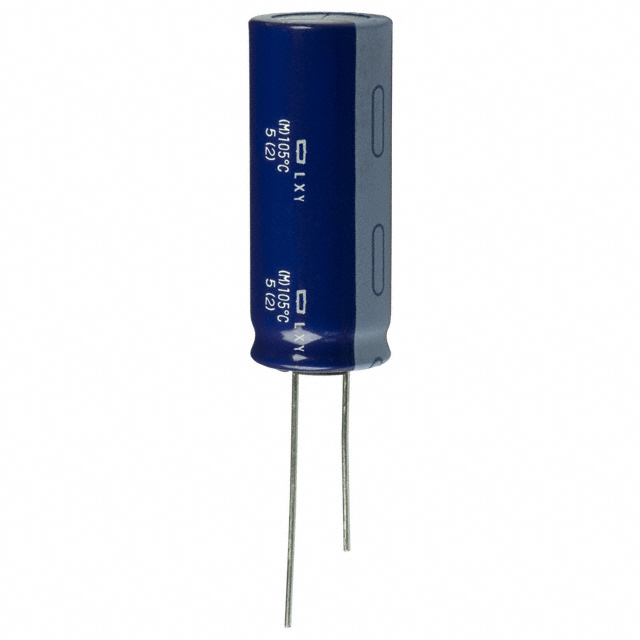

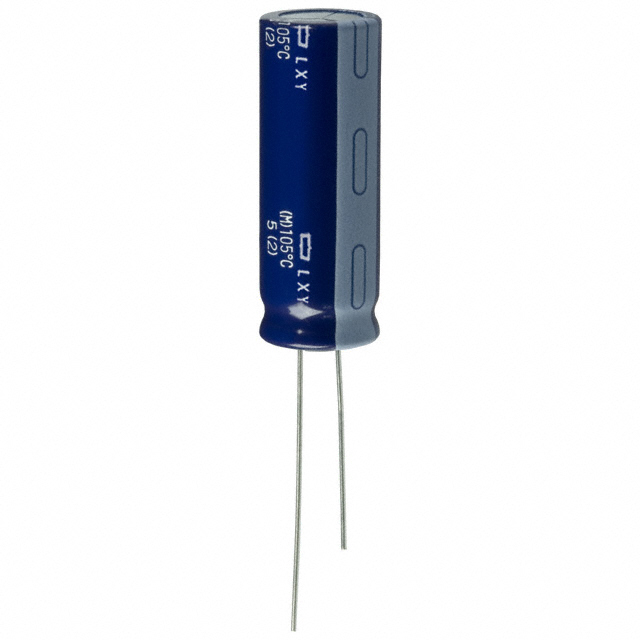

LXY Series

Manufacturer: Chemi-Con

Catalog

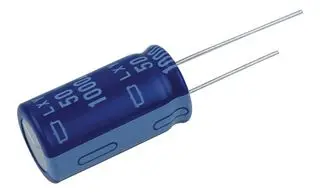

ELECTROLYTIC CAPACITOR, MINIATURE, 1000 ΜF, 50 V, ± 20%, RADIAL LEADED, 8000 HOURS @ 105°C, POLAR

Part	Applications	Ratings	Capacitance	Ripple Current @ Low Frequency	Polarization	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Voltage - Rated	Ripple Current @ High Frequency	Mounting Type	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con ELXY500ELL102ML30S	Automotive	AEC-Q200	1000 µF	1.29 A	Polar	0.295 in	7.5 mm	1.24 in	31.5 mm	20 %	50 VDC	2.15 A	Through Hole	Can Radial	0.63 in	16 mm	30 mOhms	-55 C	105 ░C	8000 Hrs
Chemi-Con ELXY350EMC331MJ20S	Automotive	AEC-Q200	330 µF	520 mA	Polar	0.197 "	5 mm	0.846 "	21.5 mm	20 %	35 V	1.04 A	Through Hole	Can Radial	0.394 in	10 mm	62 mOhms	-55 C	105 ░C	5000 Hrs
Chemi-Con ELXY250ELL392ML40S	Automotive	AEC-Q200	3900 µF	2.175 A	Polar	0.295 in	7.5 mm	1.634 in		20 %	25 VDC	2.9 A	Through Hole	Can Radial	0.63 in	16 mm	18 mOhms	-55 C	105 ░C	8000 Hrs	41.5 mm
Chemi-Con ELXY250EC3332ML35S	Automotive	AEC-Q200	3.3 mF	1.9125 A	Polar	0.295 in	7.5 mm			20 %	25 VDC	2.55 A	Through Hole	Can Radial	0.63 in	16 mm	22 mOhms	-55 C	105 ░C	8000 Hrs		1.437 "	36.5 mm
Chemi-Con ELXY500ETD121MJ16S	Automotive	AEC-Q200	120 µF	302 mA	Polar	0.197 "	5 mm			20 %	50 VDC	755 mA	Through Hole	Can Radial	0.394 in	10 mm	130 mOhms	-55 C	105 ░C	5000 Hrs			0.689 in	17.5 mm
Chemi-Con ELXY500ELL331MJ30S	Automotive	AEC-Q200	330 µF	630 mA	Polar	0.197 "	5 mm	1.24 in	31.5 mm	20 %	50 VDC	1.26 A	Through Hole	Can Radial	0.394 in	10 mm	54 mOhms	-55 C	105 ░C	5000 Hrs
Chemi-Con ELXY160ETD152MK25S	Automotive	AEC-Q200	1.5 mF	1.014 A	Polar	0.197 "	5 mm			20 %	16 V	1.69 A	Through Hole	Can Radial	0.492 in	12.5 mm	34 mOhms	-55 C	105 ░C	7000 Hrs		1.043 in	26.5 mm
Chemi-Con ELXY630ELL471MK35S	Automotive	AEC-Q200	470 µF		Polar	0.197 "	5 mm			20 %	63 V	1.39 A	Through Hole	Can Radial	0.492 in	12.5 mm	63 mOhms	-55 C	105 ░C	7000 Hrs		1.437 "	36.5 mm
Chemi-Con ELXY250ELL331MJ16S	Automotive	AEC-Q200	330 µF	412.5 mA	Polar	0.197 "	5 mm			20 %	25 VDC	825 mA	Through Hole	Can Radial	0.394 in	10 mm	84 mOhms	-55 C	105 ░C	5000 Hrs			0.689 in	17.5 mm
Chemi-Con ELXY630ELL101MJ20S	Automotive	AEC-Q200	100 µF		Polar	0.197 "	5 mm	0.846 "	21.5 mm	20 %	63 V		Through Hole	Can Radial	0.394 in	10 mm		-55 C	105 ░C
