KP212F1701 Series
Manufacturer: INFINEON
Beta
⌘K

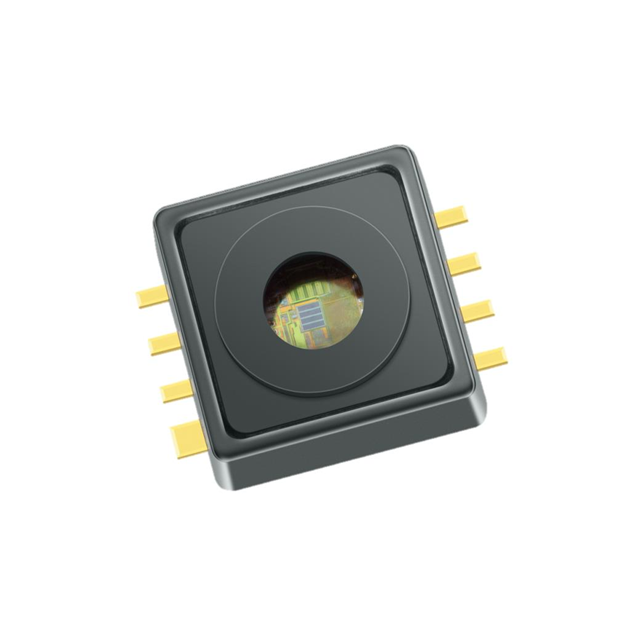

XENSIV™ - KP212F1701 ANALOG ABSOLUTE PRESSURE SENSOR FOR LOWER EMISSION, BETTER COMBUSTION AND HIGHER EFFICIENCY IN 2-WHEELERS
| Part | Termination Style | Output Type | Accuracy | Accuracy | Qualification | Features | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Port Style | Mounting Type | Output [Max] | Output [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Pressure [Max] | Operating Pressure [Max] | Operating Pressure [Min] | Operating Pressure [Min] | Grade | Maximum Pressure | Maximum Pressure | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | SMD (SMT) Tab | Analog Voltage | 2 kPa | 0.29 PSI | AEC-Q100 | Amplified Output Temperature Compensated | PG-DSOF-8-16 | 5.5 V | 4.5 V | No Port | Surface Mount | 4.5 V | 0.5 V | 125 °C | -40 °C | 115 kPa | 16.68 PSI | 15 kPa | 2.18 PSI | Automotive | 150 kPa | 21.76 PSI | 8-SMD Module |
