2110-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

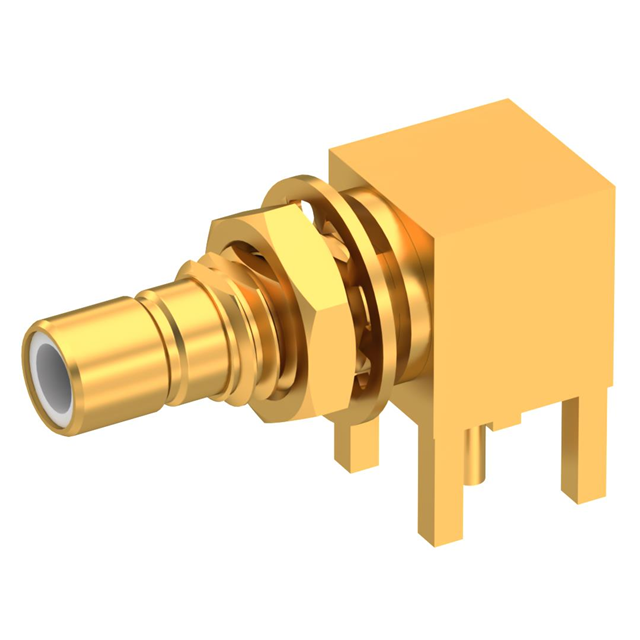

SMB M RA BHD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Dielectric Material | Body Material | Body Finish | Includes | Connector Type | Fastening Type | Shield Termination | Impedance | Housing Color | Connector Style | Frequency - Max [Max] | Contact Termination | Mounting Feature | Number of Ports | Mounting Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Gold | Polytetrafluoroethylene (PTFE) | Brass | Gold | 1 Connector 1 Lockwasher 1 Nut | Jack Male Pin | Snap-On | Solder | 50 Ohms | Gold | SMB | 4 GHz | Solder | Bulkhead - Front Side Nut | 1 | Panel Mount Right Angle Through Hole | Brass |
