UTS68 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Contact Finish - Mating	Fastening Type	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Features	Primary Material	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Termination	Voltage Rating	Applications	Contact Material	Insert Material	Number of Positions	Color	Orientation	Shielding	Mounting Type	Shell Size - Insert	Shell Size - Insert Width	Shell Size - Insert Length

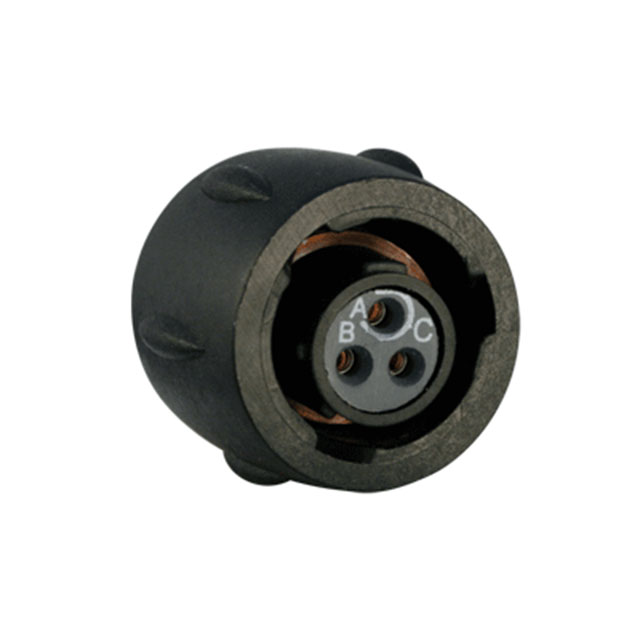

Amphenol Aerospace Operations UTS68E33S	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Female Sockets Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0	33	8	Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)

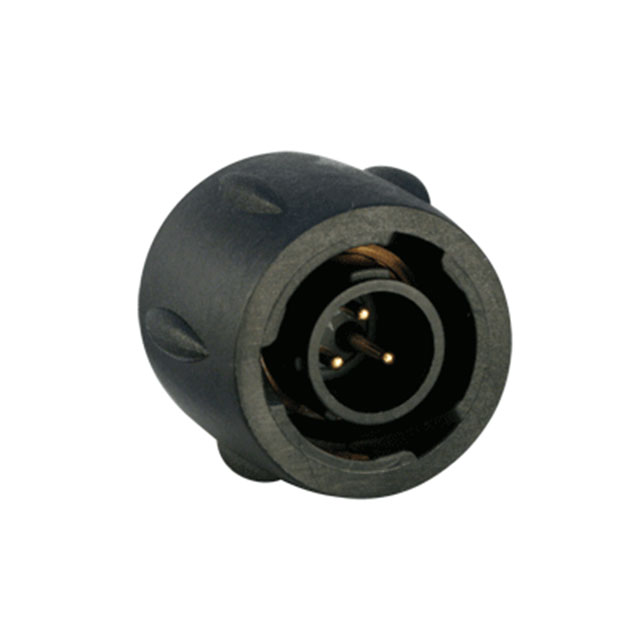

Amphenol Aerospace Operations UTS68E33P	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Male Pins Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0	33	8	Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)

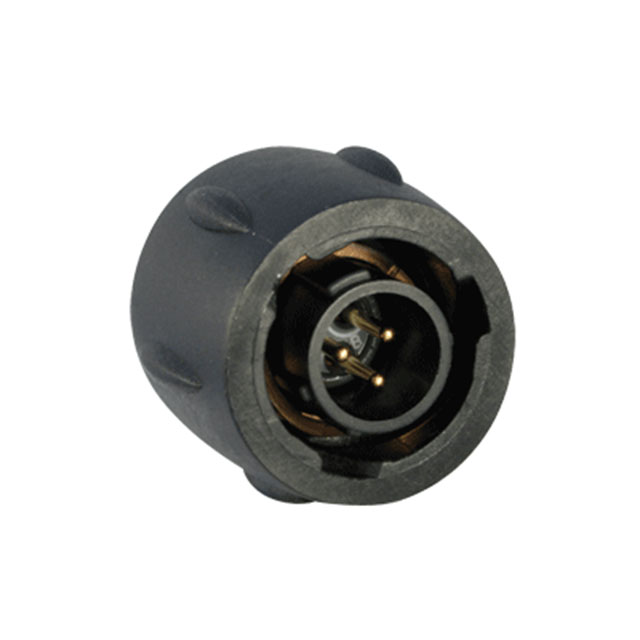

Amphenol Aerospace Operations UTS68E3AP	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Male Pins Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)	8-3A

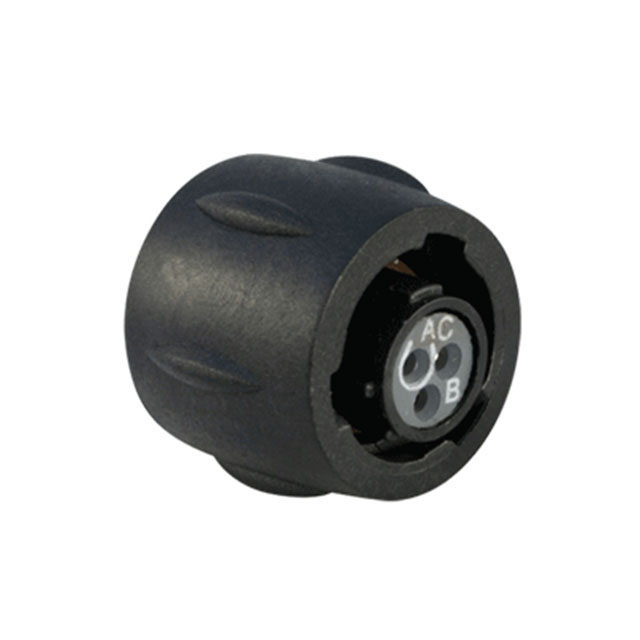

Amphenol Aerospace Operations UTS68E3AS	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Female Sockets Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)	8-3A
Amphenol Aerospace Operations UTS68E2SW	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Female Sockets Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	2	Black	W	Unshielded	Free Hanging (In-Line)		2 mm	8 mm

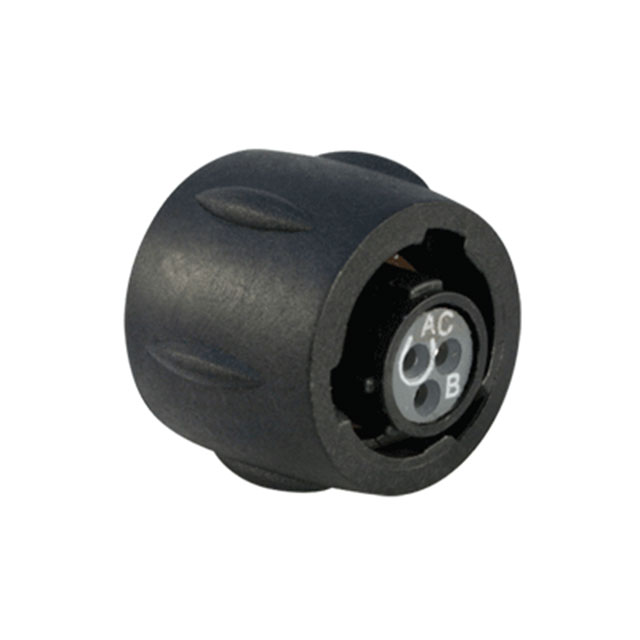

Amphenol Aerospace Operations UTS68E98S	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Female Sockets Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0	98	8	Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)

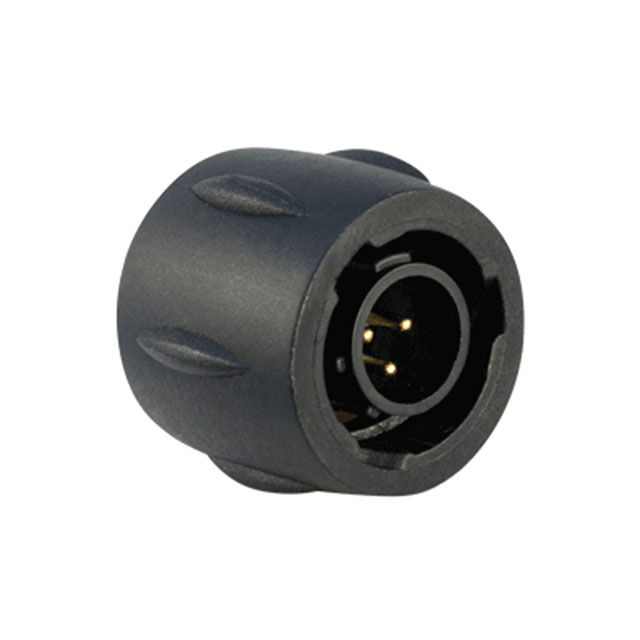

Amphenol Aerospace Operations UTS68E3P	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Male Pins Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)		3 mm	8 mm

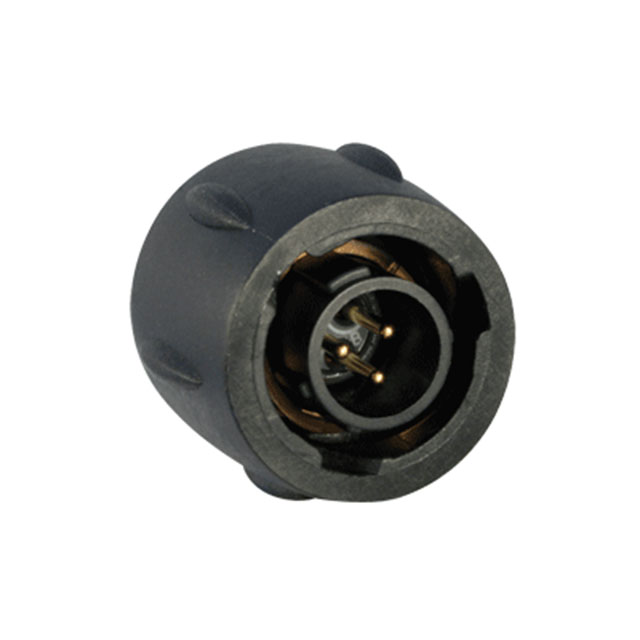

Amphenol Aerospace Operations UTS68E98P	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Male Pins Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0	98	8	Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)
Amphenol Aerospace Operations UTS68E3S	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Female Sockets Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	3	Black	N (Normal)	Unshielded	Free Hanging (In-Line)		3 mm	8 mm

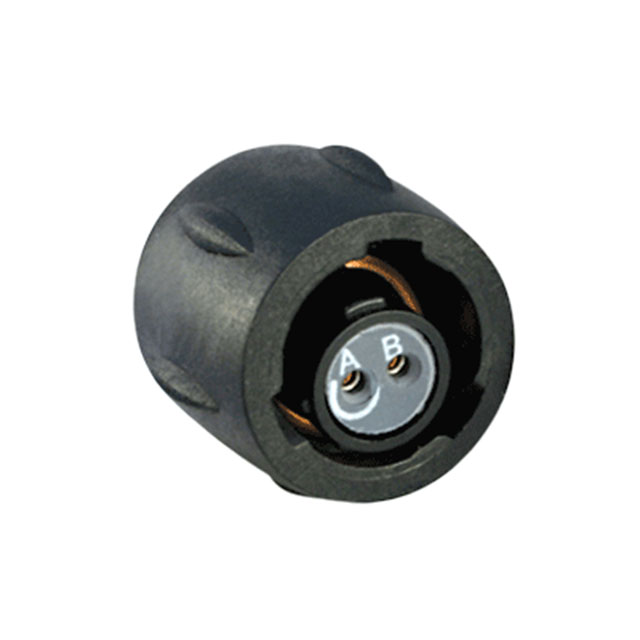

Amphenol Aerospace Operations UTS68E2S	Gold	Bayonet Lock	7 A	-40 °C	105 °C	Female Sockets Plug	Coupling Nut UV Resistant	Plastic	16 µin	UL94 V-0			Nylon Polyamide (PA)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Solder Cup	250 V	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	2	Black	N (Normal)	Unshielded	Free Hanging (In-Line)		2 mm	8 mm
