RSC Series
Manufacturer: Lumberg Automation
Beta
⌘K

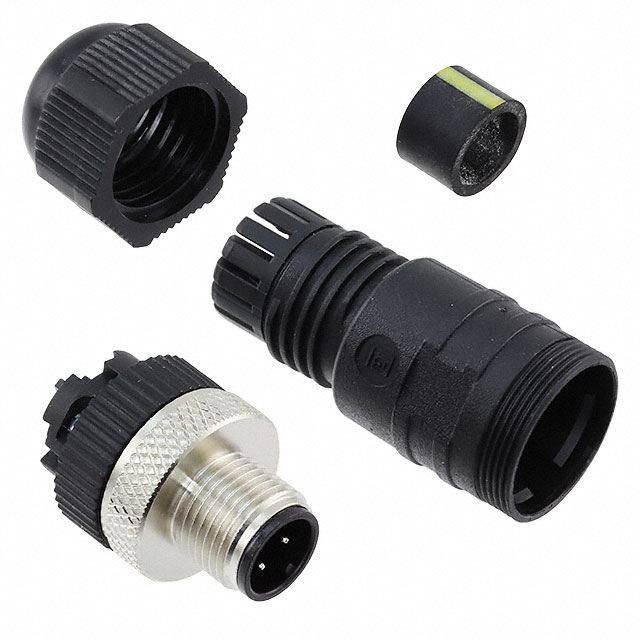

SENSOR CONNECTOR, M12, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT
| Part | Number of Positions | Mounting Type | Termination | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Shell Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Fastening Type | Insert Material | Ingress Protection | Color | Applications | Connector Type | Contact Finish - Mating | Orientation | Shell Finish | Backshell Material, Plating | Features | Shell Size - Insert | Primary Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumberg Automation | 4 | Free Hanging (In-Line) | Screw | Copper Zinc | 90 °C | -25 °C | 250 V | Copper Zinc | 0.197 in | 3 mm | 5 mm | 0.118 in | Threaded | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Black Silver | Industrial | Receptacle Male Pins | Copper Alloy | A | Nickel | Polybutylene Terephthalate (PBT) | Backshell | M12-4 | Metal | |
 Lumberg Automation | 4 | Free Hanging (In-Line) | Screw | Copper Zinc | 90 °C | -25 °C | 250 V | Copper Zinc | 0.315 in | 4 mm | 8 mm | 0.157 in | Threaded | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Black Silver | Industrial | Receptacle Male Pins | Copper Alloy | Keyed | Nickel | Polybutylene Terephthalate (PBT) | Backshell | M12-4 | Metal | |
 Lumberg Automation | 5 | Free Hanging (In-Line) | Screw | Copper Zinc | 90 °C | -40 C | 250 V | 0.551 " | 12 mm | 14 mm | 0.472 in | Threaded | Thermoplastic Polyurethane (TPU) | IP67 - Dust Tight Waterproof | Black | Automotive Industrial | Receptacle Male Pins | Gold | Keyed | Nylon Polyamide (PA) | Backshell | 7/8 | Plastic | 5 | ||
 Lumberg Automation | 4 | Free Hanging (In-Line) | Screw | Copper Zinc | 90 °C | -25 °C | 250 V | Copper Zinc | 0.256 in | 3 mm | 6.5 mm | 0.118 in | Threaded | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Black Silver | Industrial | Receptacle Male Pins | Copper Alloy | Keyed | Nickel | Polybutylene Terephthalate (PBT) | Backshell | M12-4 | Metal | |
 Lumberg Automation | 5 | Free Hanging (In-Line) | Screw | Copper Zinc | 90 °C | -25 °C | 63 V | Copper Zinc | 0.256 in | 3 mm | 6.5 mm | 0.118 in | Threaded | Polybutylene Terephthalate (PBT) | IP67 - Dust Tight Waterproof | Black Silver | Industrial | Receptacle Male Pins | Copper Alloy | Keyed | Nickel | Polybutylene Terephthalate (PBT) | Backshell | M12-5 | Metal | |
 Lumberg Automation | 4 | Free Hanging (In-Line) | Screw | Copper Zinc | 90 °C | -40 C | 250 V | 0.472 in | 10 mm | 12 mm | 0.394 in | Threaded | Thermoplastic Polyurethane (TPU) | IP67 - Dust Tight Waterproof | Black | Automotive Industrial | Receptacle Male Pins | Gold | Keyed | Nylon Polyamide (PA) | Backshell | Plastic | 0.875 in 4 |
