ADTSJW6 Series
Manufacturer: APEM Inc.
Beta
⌘K

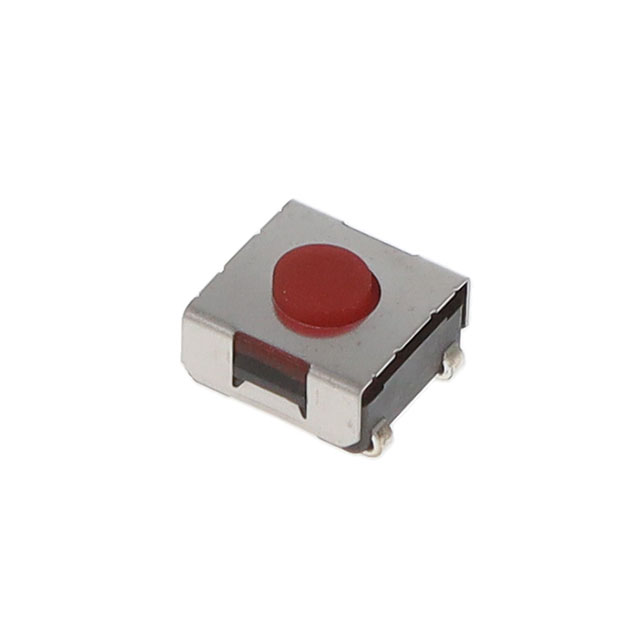

SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Actuator Material | Actuator Height off PCB, Vertical | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Actuator Orientation | Termination Style | Outline [y] | Outline [x] | Contact Rating @ Voltage | Mounting Type | Circuit | Features | Actuator Type | Illumination | Operating Force | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 0.45 mm | Polyamide (PA) Nylon | 3.8 mm | -25 °C | 70 °C | Off-Mom | Top Actuated | J Lead | 6.2 mm | 6.3 mm | 0.05 A 12 VDC | Surface Mount | SPST-NO | Washable | Standard | Non-Illuminated | 260 gf | |
APEM Inc. | 0.45 mm | Polyamide (PA) Nylon | -25 °C | 70 °C | Off-Mom | Top Actuated | J Lead | 6.2 mm | 6.3 mm | 0.05 A 12 VDC | Surface Mount | SPST-NO | Washable | Standard | Non-Illuminated | 360 gf | 3.5 mm | |
 APEM Inc. | 0.45 mm | Polyamide (PA) Nylon | -25 °C | 70 °C | Off-Mom | Top Actuated | J Lead | 6.2 mm | 6.3 mm | 0.05 A 12 VDC | Surface Mount | SPST-NO | Washable | Standard | Non-Illuminated | 260 gf | 3.5 mm |
