CSI-RSFB Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

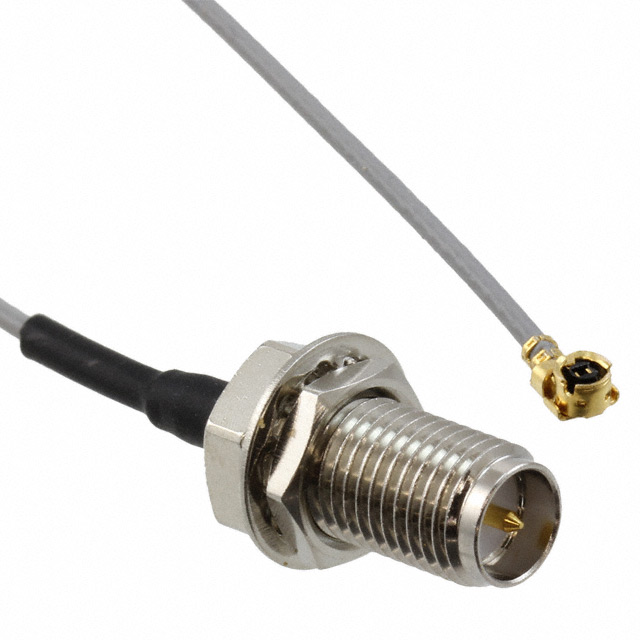

RP-SMA TO U.FL/MHF1 300MM 1.13 OD
| Part | Color | 1st Contact Gender | Cable Type | Cable Type [diameter] | 1st Connector Mounting Type | 2nd Contact Gender | Frequency - Max [Max] | Style | 1st Connector | 1st Connector Mounting Feature | 2nd Connector Mounting Type | Length | Length | Overall Impedance | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gray | Male | Coaxial Cable | 1.13 mm | Panel Mount | Female | 3 GHz | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 11.811 in | 300 mm | 50 Ohms | U.FL (UMCC) Plug Right Angle |
TE Connectivity AMP Connectors | Gray | Male | Coaxial Cable | 1.13 mm | Panel Mount | Female | 3 GHz | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 3.937 in | 100 mm | 50 Ohms | U.FL (UMCC) Plug Right Angle |
 TE Connectivity AMP Connectors | Gray | Male | Coaxial Cable | 1.13 mm | Panel Mount | Female | 3 GHz | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 7.874 in | 200 mm | 50 Ohms | U.FL (UMCC) Plug Right Angle |
