0603, 0805 Series

Catalog

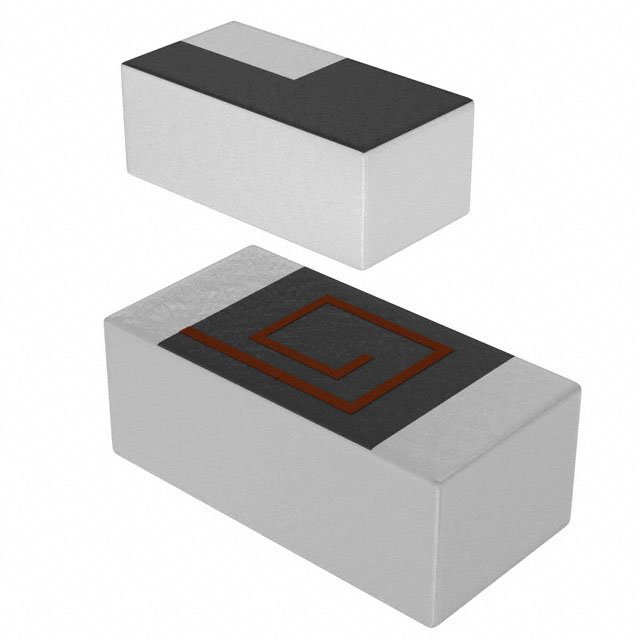

FIXED IND 3.9NH 500MA 120MOHM SM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Supplier Device Package	Inductance	Frequency - Self Resonant [custom]	Height - Seated (Max) [Max]	Height - Seated (Max)	Shielding	Type	Tolerance	Mounting Type	Inductance Frequency - Test	Package / Case	Package / Case	Q @ Freq	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Material - Core	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
KYOCERA AVX L06033R9CGWTR	-55 C	125 °C	0.5 A	0603 (1608 Metric)	3.9 nH	6.5 GHz	0.028 in	0.71 mm	Unshielded	Thin Film	0.2 nH	Surface Mount	450 MHz	1608 Metric	0603	25 450 MHz	0.032 in	1.6 mm	0.063 "	0.81 mm	120 mOhm	Non-Magnetic
KYOCERA AVX L0603120GGSTR	-55 C	125 °C	0.3 A	0603 (1608 Metric)	12 nH		0.028 in	0.71 mm	Unshielded	Thin Film	2 %	Surface Mount	450 MHz	1608 Metric	0603	28 450 MHz	0.032 in	1.6 mm	0.063 "	0.81 mm	500 mOhm	Non-Magnetic	3 GHz
KYOCERA AVX L0805220JEWTR	-55 C	125 °C	0.5 A	0805 (2012 Metric)	22 nH				Unshielded	Thin Film	5 %	Surface Mount	450 MHz		0805	36 450 MHz		2.11 mm		1.5 mm	400 mOhm	Non-Magnetic	1.4 GHz	1.04 mm	0.041 in	0.059 "	0.083 "
KYOCERA AVX L08052R7DEWTR	-55 C	125 °C	1 A	0805 (2012 Metric)	2.7 nH				Unshielded	Thin Film	0.5 nH	Surface Mount	450 MHz		0805			2.11 mm		1.5 mm	80 mOhm	Non-Magnetic	10 GHz	1.04 mm	0.041 in	0.059 "	0.083 "	450 MHz	42
KYOCERA AVX L08053R3DEWTR	-55 C	125 °C	750 mA	0805 (2012 Metric)	3.3 nH				Unshielded	Thin Film	0.5 nH	Surface Mount	450 MHz		0805			2.11 mm		1.5 mm		Non-Magnetic	10 GHz	1.04 mm	0.041 in	0.059 "	0.083 "			110 mOhm
KYOCERA AVX L08051R8DEWTR	-55 C	125 °C	1 A	0805 (2012 Metric)	1.8 nH				Unshielded	Thin Film	0.5 nH	Surface Mount	450 MHz		0805			2.11 mm		1.5 mm		Non-Magnetic	10 GHz	1.04 mm	0.041 in	0.059 "	0.083 "	450 MHz	50
KYOCERA AVX L0805220GEWTR	-55 C	125 °C	0.5 A	0805 (2012 Metric)	22 nH				Unshielded	Thin Film	2 %	Surface Mount	450 MHz		0805	36 450 MHz		2.11 mm		1.5 mm	400 mOhm	Non-Magnetic	1.4 GHz	1.04 mm	0.041 in	0.059 "	0.083 "
KYOCERA AVX L08051R2CEWTR	-55 C	125 °C	1 A	0805 (2012 Metric)	1.2 nH				Unshielded	Thin Film	0.2 nH	Surface Mount	450 MHz		0805			2.11 mm		1.5 mm	50 mOhm	Non-Magnetic	10 GHz	1.04 mm	0.041 in	0.059 "	0.083 "	450 MHz	60
