ABF Series
Manufacturer: Mini-Circuits
Beta
⌘K

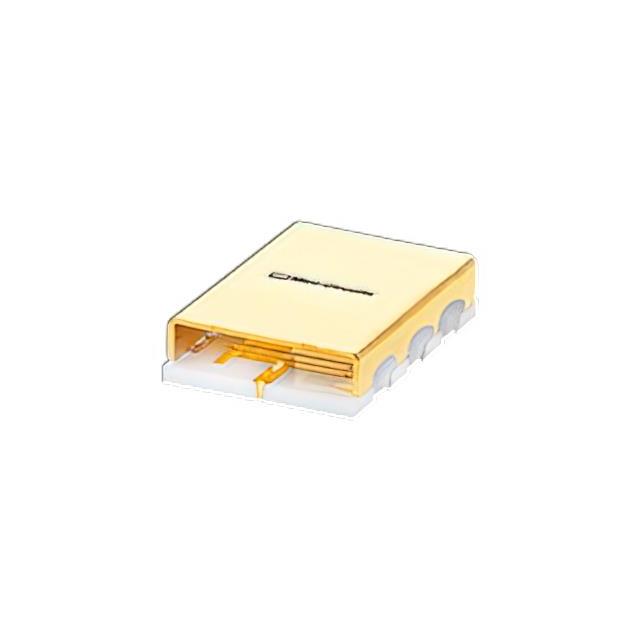

SIGNAL CONDITIONING THIN FILM BAND PASS FILTER, 8200 - 9800 MHZ, 50 OHM
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Insertion Loss | Height (Max) [z] | Height (Max) [z] | Frequency | Bandwidth | Package / Case | Filter Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 5.59 mm | 8.13 mm | 0.32 " | 0.22 in | 2.5 dB | 2.15 mm | 0.085 in | 9 GHz | 1.6 GHz | 6-SMD No Lead | Band Pass | Surface Mount |
 Mini-Circuits | 5.59 mm | 8.13 mm | 0.32 " | 0.22 in | 2.7 dB | 2.29 mm | 0.09 in | 8.075 GHz | 650 MHz | 3-SMD Module | Band Pass | Surface Mount |
 Mini-Circuits | 5.59 mm | 8.13 mm | 0.32 " | 0.22 in | 2.5 dB | 2.29 mm | 0.09 in | 11.4 GHz | 3.6 GHz | 3-SMD Module | Band Pass | Surface Mount |
