CB0 Series

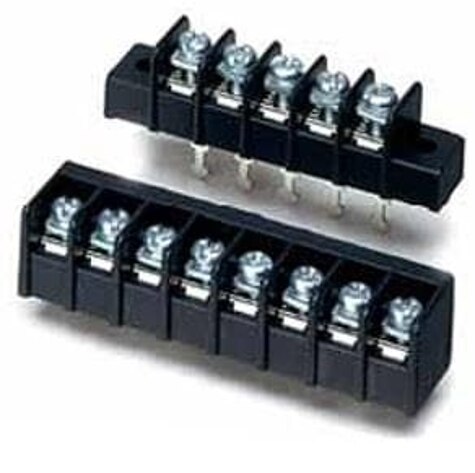

Barrier Terminal Blocks 12P 6.35mm 10A 300V MAGNUM CB0 SERIES
Manufacturer: Eaton - Electronics Division
Catalog
Barrier Terminal Blocks 12P 6.35mm 10A 300V MAGNUM CB0 SERIES
Beta
⌘K
Barrier Terminal Blocks 12P 6.35mm 10A 300V MAGNUM CB0 SERIES
Barrier Terminal Blocks 12P 6.35mm 10A 300V MAGNUM CB0 SERIES
Barrier Terminal Blocks 12P 6.35mm 10A 300V MAGNUM CB0 SERIES
| Part | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Mounting Type | Terminal Screw Material | Voltage Rating | Current Rating (Amps) | Bottom Termination | Color | Number of Circuits | Barrier Type | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Block Type | Number of Rows | Number of Wire Entries | Pitch | Pitch | Top Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | UL94 V-0 | 120 °C | -40 C | Nylon 6/6 Polyamide (PA66) | Through Hole | Steel | 300 VDC | 10 A | PC Pin | Black | 12 | 3 Wall (Tri) | 16 AWG | 30 AWG | Barrier Block | 1 | 12 | 6.35 mm | 0.25 in | Screws with Captive Plate |
