34DWMSP Series

Catalog

SWITCH TOGGLE ON NONE ON SPDT ROUND LEVER PC PINS 20VAC 20VDC 0.4VA PC MOUNT WITH BRACKET

Part	Electrical Life	Actuator Material	Voltage Rating - AC	Actuator Length [x]	Circuit	Bushing Thread	Termination Style	Illumination	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Ingress Protection	Voltage Rating - DC	Actuator Type	Switch Function
Grayhill Inc. 34DWMSP15B4M7RT	30000 Cycles	Brass Chrome Plated	20 V	10.7 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Right Angle Through Hole Vertical	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	On-On

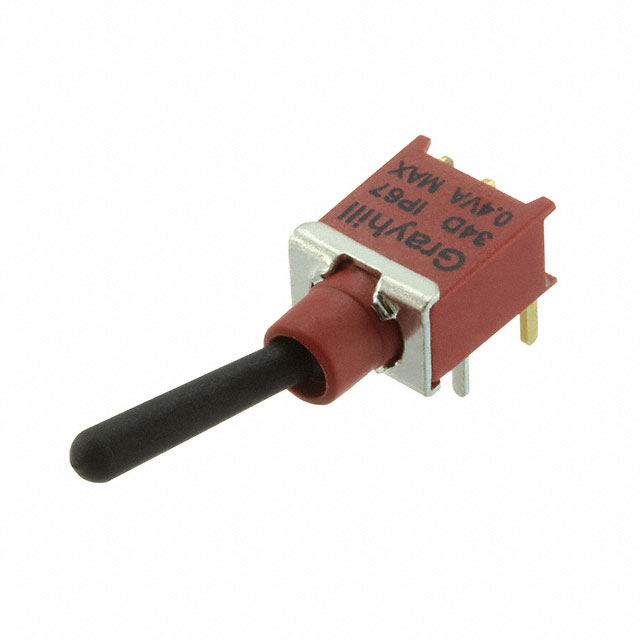

Grayhill Inc. 34DWMSP15B4M6RT	30000 Cycles	Brass Chrome Plated	20 V	10.7 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Right Angle Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	On-On
Grayhill Inc. 34DWMSP15B4M2RT	30000 Cycles	Brass Chrome Plated	20 V	10.7 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	On-On
Grayhill Inc. 34DWMSP52B4M6RT	30000 Cycles	Brass Chrome Plated	20 V	6.1 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Right Angle Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	On-Off-Mom
Grayhill Inc. 34DWMSP12B4M6RT	30000 Cycles	Brass Chrome Plated	20 V	6.1 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Right Angle Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	On-On
Grayhill Inc. 34DWMSP33B4M2RT	30000 Cycles	Brass Chrome Plated	20 V	8.7 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	On-Off-On
Grayhill Inc. 34DWMSP12B4V2RT	30000 Cycles	Brass Chrome Plated	20 V	6.1 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Through Hole	0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	On-On
Grayhill Inc. 34DWMSP41B4M1RT	30000 Cycles	Brass Chrome Plated	20 V	10.69 mm	SPDT	Unthreaded	Solder Lug	Non-Illuminated		0.4 VA	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	20 V	Standard Round	Mom-Off-Mom
Grayhill Inc. 34DWMSP31B4M2QT	30000 Cycles	Brass Chrome Plated	125 V	10.7 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Through Hole	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	28 V	Standard Round	On-Off-On
Grayhill Inc. 34DWMSP12B4M6QT	30000 Cycles	Brass Chrome Plated	125 V	6.1 mm	SPDT	Unthreaded	PC Pin	Non-Illuminated	Right Angle Through Hole	3 A	85 °C	-30 ░C	Epoxy Sealed Terminals	IP67 - Dust Tight Waterproof	28 V	Standard Round	On-On
