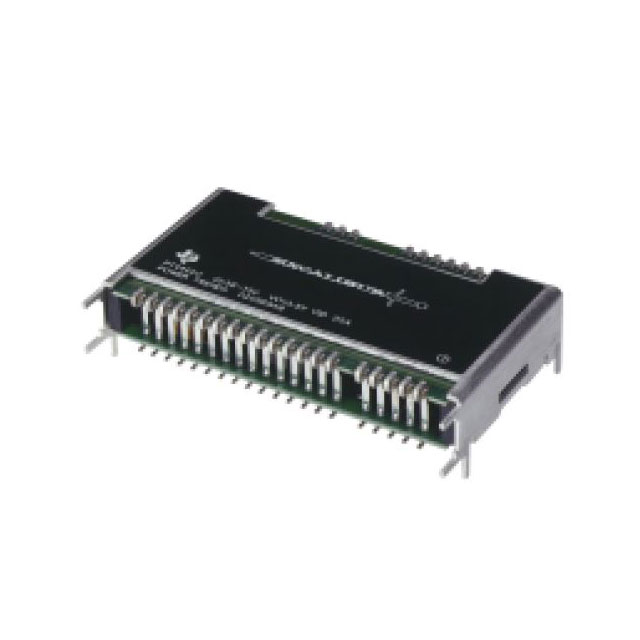

PT4413 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 3.4-5.7V 100W
| Part | Voltage - Input (Max) [Max] | Package / Case | Applications | Number of Outputs | Efficiency | Current - Output (Max) [Max] | Voltage - Isolation | Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Min) [Min] | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 75 V | 21-SIP Module | ITE (Commercial) | 1 | 92 % | 20 A | 1.5 kV | Isolated Module | 5.7 V | 3.4 V | 36 V | UVLO | Through Hole Right Angle | 85 °C | -40 °C | 100 W | ||||||
Texas Instruments | 75 V | 21-SMD Module | ITE (Commercial) | 1 | 92 % | 20 A | 1.5 kV | Isolated Module | 5.7 V | 3.4 V | 36 V | OCP OTP OVP Remote On/Off UVLO | Surface Mount | 85 °C | -40 °C | 100 W | 65.5 mm | 12 mm | 0.47 " | 2.58 " | 1.62 in | 41.1 mm |
