PT07E Series

Catalog

PT 8C 8#16 SKT RECP

Part	Mounting Type	Applications	Mounting Feature	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Qualification	Insert Material	Contact Finish - Mating	Ingress Protection	Contact Material	Orientation	Shell Size - Insert Length	Shell Size - Insert Width	Shielding	Termination	Fastening Type	Connector Type	Primary Material	Features	Shell Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Color	Shell Finish	Backshell Material, Plating
Amphenol Aerospace Operations PT07E16-8S-152	Panel Mount	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Bulkhead Front Side Nut	8	125 °C	-55 °C	MIL-DTL-26482 Series I	Neoprene	Gold	Environment Resistant	Copper Alloy	N (Normal)	16 mm	8 mm	Unshielded	Solder Cup	Bayonet Lock	Female Sockets Receptacle
Amphenol Aerospace Operations PT07E-22-41PW	Panel Mount	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	41	125 °C	-55 °C	MIL-DTL-26482 Series I	Neoprene	Gold	Environment Sealed	Copper Alloy	W			Unshielded	Solder Cup	Bayonet Lock	Male Pins Receptacle	Metal	Backshell	Aluminum	22	41	Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium

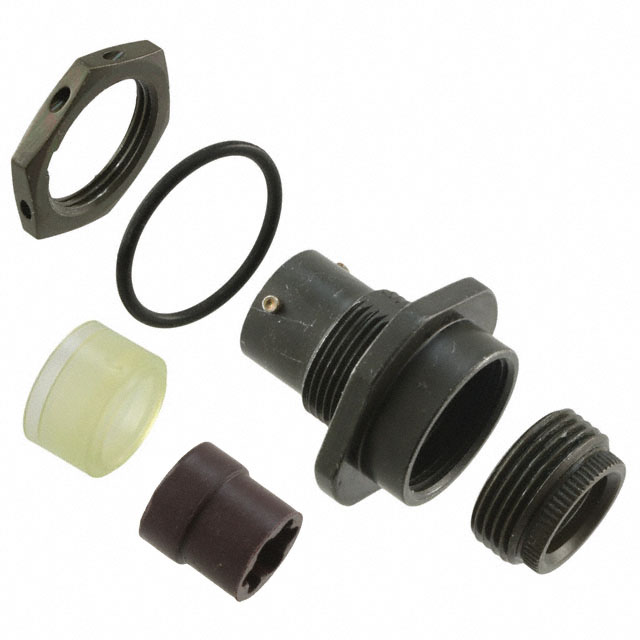

Amphenol Aerospace Operations PT07E-10-6S	Panel Mount	Aerospace Industrial Instrumentation Mass Transit Military	Bulkhead Front Side Nut	6	125 °C	-55 °C	MIL-DTL-26482 Series I	Neoprene	Gold	Environment Sealed	Copper Alloy	N (Normal)	10 mm	6 mm	Unshielded	Solder Cup	Bayonet Lock	Female Sockets Receptacle	Metal	Backshell	Aluminum			Olive Drab	Cadmium Olive Drab Chromate	Aluminum Olive Drab Cadmium
