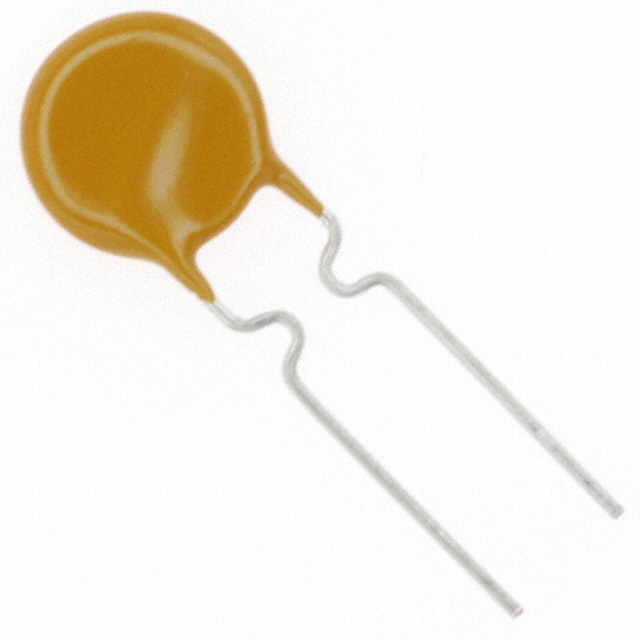

MF-R065 Series

Catalog

RESETTABLE FUSE, PTC, THERMISTOR, HOLDING CURRENT 0.65 AMPERE, TRIPPING CURRENT 1.30 AMPERE, RESET TIME 5.3 SECONDS

Part	Approval Agency	Resistance - Post Trip (R1) (Max) [Max]	Type	Current - Max [Max]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Time to Trip	Current - Trip (It)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Mounting Type	Voltage - Max [Max]	Current - Hold (Ih) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Package / Case
Bourns Inc. MF-R065-AP	cURus TUV	720 mOhms	Polymeric	40 A	9.7 mm	0.122 "	0.382 "	3.1 mm	5.3 s	1.3 A	85 °C	-40 C	0.598 in	15.2 mm	0.201 in	5.1 mm	Through Hole	60 V	650 mA	270 mOhms	Disc Radial
Bourns Inc. MF-R065-2-99	cURus TUV	720 mOhms	Polymeric	40 A	9.7 mm	0.122 "	0.382 "	3.1 mm	5.3 s	1.3 A	85 °C	-40 C	0.598 in	15.2 mm	0.201 in	5.1 mm	Through Hole	60 V	650 mA	270 mOhms	Disc Radial
