D2T Series

Catalog

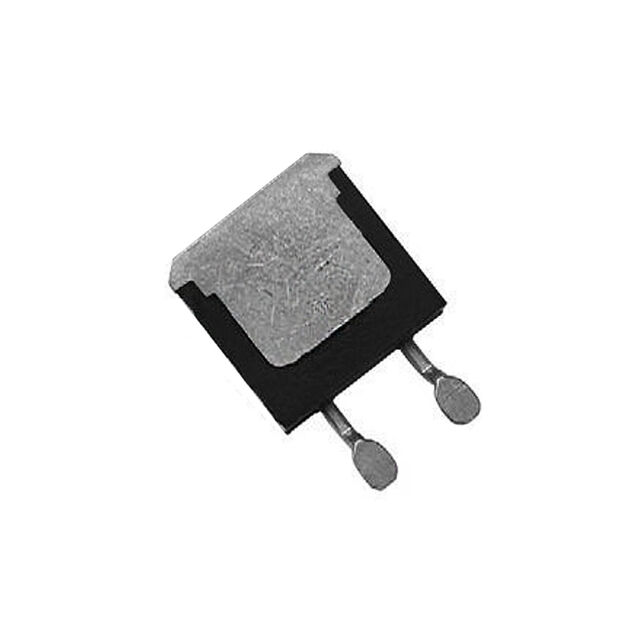

THICK FILM RESISTORS - SMD D2TO 20 C 30U 5% TU50 E3

Part	Package Name	Ratings	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Resistance	Composition	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Temperature Coefficient	Features	Tolerance	Number of Terminations	Package / Case
Vishay Dale D2TO020C30R00JTE3
Vishay Dale D2TO020C3R000FRE3	TO-263 (D2PAK)	AEC-Q200	20 W	155 °C	-55 °C	3 Ohm	Thick Film	0.346 in	0.398 in	0.189 in	150 ppm/¯C	Automotive AEC-Q200 Moisture Resistant Non-Inductive	1 %	2	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Vishay Dale D2TO020CR5000KTE3	TO-263 (D2PAK)	AEC-Q200	20 W	155 °C	-55 °C	0.5 Ohm	Thick Film	0.346 in	0.398 in	0.189 in	150 ppm/¯C	Automotive AEC-Q200 Moisture Resistant Non-Inductive	10 %	2	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Vishay Dale D2TO020C7R500FTE3	TO-263 (D2PAK)	AEC-Q200	20 W	155 °C	-55 °C	7.5 Ohm	Thick Film	0.346 in	0.398 in	0.189 in	150 ppm/¯C	Automotive AEC-Q200 Moisture Resistant Non-Inductive	1 %	2	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
