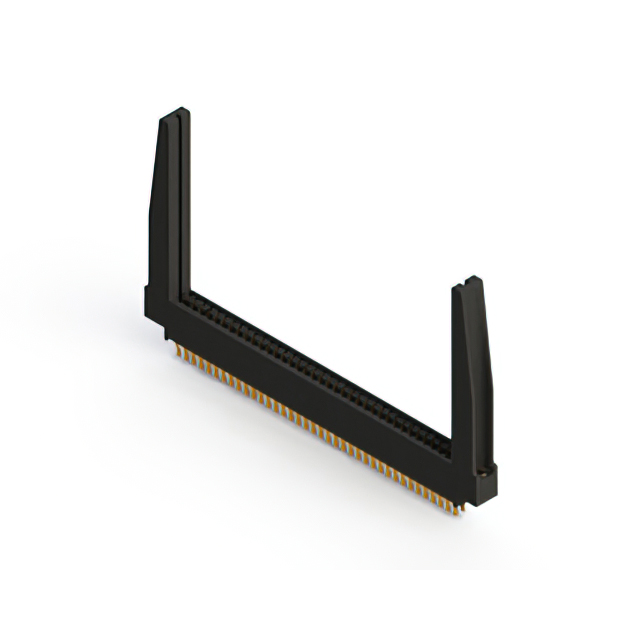

396-076 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 76POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions/Bay/Row [custom] | Contact Type | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type | Number of Positions | Flange Feature | Features | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Read Out | Gender | Card Type | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Board Edge Straddle Mount | 76 | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | Gold | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Board Edge Straddle Mount | 76 | Floating Bobbin Flush Mount | Card Extender | Gold | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Board Edge Straddle Mount | 76 | Card Extender | Gold | 0.25 Ám | 10 Áin | Solder | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Right Angle Through Hole | 76 | Flush Mount Side Opening Unthreaded | Gold | 0.25 Ám | 10 Áin | Solder Wire Wrap | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Through Hole | 76 | Gold | 0.25 Ám | 10 Áin | Solder | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Board Edge Straddle Mount | 76 | 4-40 Threaded Insert Top Mount Opening | Card Extender Card Guides | Gold | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Board Edge Straddle Mount | 76 | 4-40 Threaded Insert Top Mount Opening | Card Extender Card Guides | Gold | 0.25 Ám | 10 Áin | Solder | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Board Edge Straddle Mount | 76 | M3 Threaded Insert Top Mount Opening | Card Extender | Gold | 0.25 Ám | 10 Áin | Solder | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Through Hole | 76 | 4-40 Threaded Insert Top Mount Opening | Card Guides | Gold | 0.25 Ám | 10 Áin | Wire Wrap | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 38 | Cantilever | 3.18 mm | 0.125 in | -40 C | 105 ░C | Black | Through Hole | 76 | Gold | 0.25 Ám | 10 Áin | Solder | Dual | Female | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Copper Alloy | 0.128 " | 3.25 mm |
