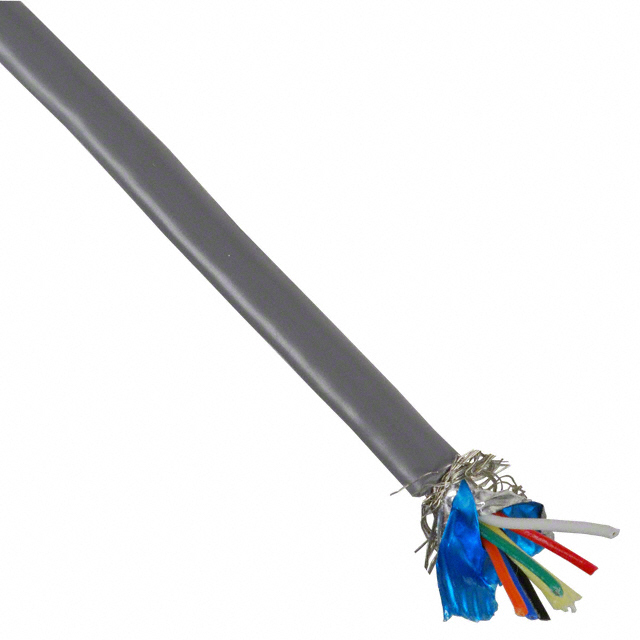

3466C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 6COND 28AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Length | Length | Conductor Insulation | Usage | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Material | Conductor Material | Features | Cable Type | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Communication Control | Slate | Braid Foil | 0.202 in | 5.13 mm | 6 | 0.035 in | 0.889 mm | 7 | 36 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Copper Tinned | Drain Wire | Multi-Conductor | 28 AWG | 80 °C | -20 ░C | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | Communication Control | Slate | Braid Foil | 0.202 in | 5.13 mm | 6 | 0.035 in | 0.889 mm | 7 | 36 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Copper Tinned | Drain Wire | Multi-Conductor | 28 AWG | 80 °C | -20 ░C | 100 ft | 30.5 m |
