IPD80R4 Series
Manufacturer: INFINEON
Beta
⌘K

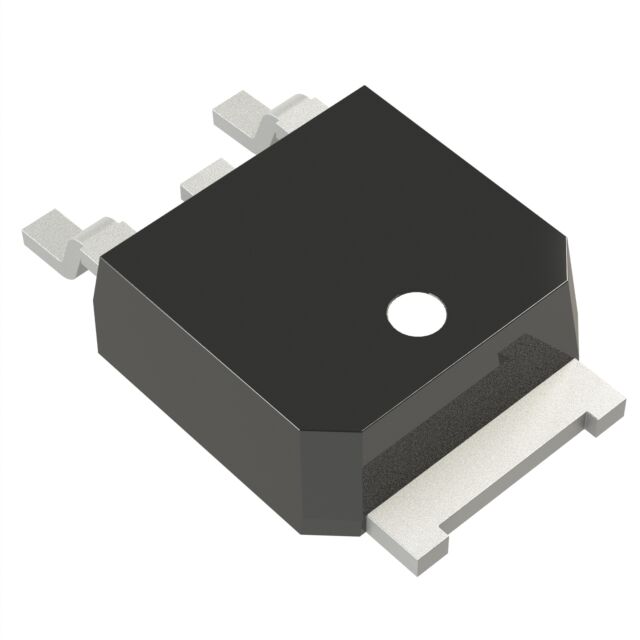

COOLMOS™ P7 N-CHANNEL SUPERJUNCTION MOSFET 800 V ; DPAK TO-252 PACKAGE; 4500 MOHM; PRICE/PERFORMANCE
| Part | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Operating Temperature [Max] | Operating Temperature [Min] | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Technology | Package / Case | Vgs (Max) | FET Type | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Mounting Type | Power Dissipation (Max) | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 4.5 Ohm | 800 V | 150 °C | -55 °C | 3.5 V | 10 V | MOSFET (Metal Oxide) | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 20 V | N-Channel | 4 nC | 80 pF | PG-TO252-3 | Surface Mount | 13 W | 1.5 A |
