CSD96497Q5MC Series

65A synchronous buck NexFET smart power stage with DualCool package

Catalog

65A synchronous buck NexFET smart power stage with DualCool package

Part	Fault Protection	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Applications	Package / Case	Load Type	Technology	Current - Output / Channel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Peak Output	Features	Voltage - Load [Max]	Voltage - Load [Min]

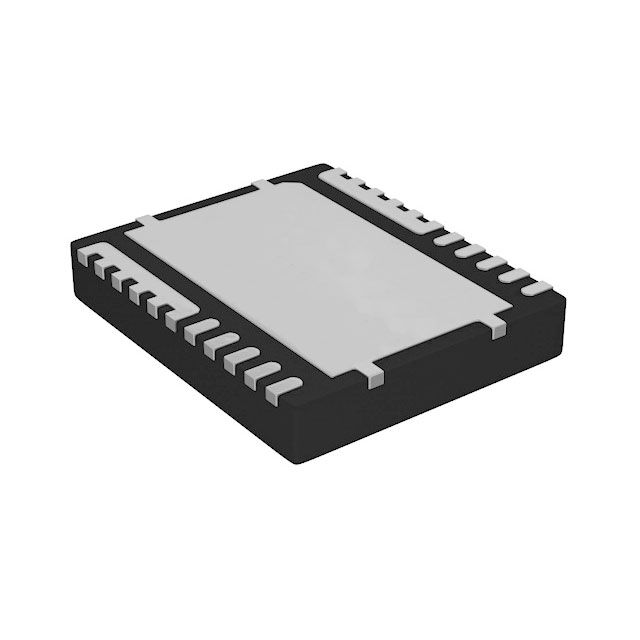

Texas Instruments CSD96497Q5MC	Over Current Over Temperature Shoot-Through Short Circuit	PWM	5 V	3.3 V	12-VSON-CLIP (5x6)	DC-DC Converters Synchronous Buck Converter	12-PowerTFDFN	Capacitive Inductive Resistive	Power MOSFET	30 A	-55 °C	150 °C	Surface Mount	65 A	Bootstrap Circuit Diode Emulation	5 V	3.3 V
Texas Instruments CSD96497Q5MCT	Over Current Over Temperature Shoot-Through Short Circuit	PWM	5 V	3.3 V	12-VSON-CLIP (5x6)	DC-DC Converters Synchronous Buck Converter	12-PowerTFDFN	Capacitive Inductive Resistive	Power MOSFET	30 A	-55 °C	150 °C	Surface Mount	65 A	Bootstrap Circuit Diode Emulation	5 V	3.3 V

Catalog

65A synchronous buck NexFET smart power stage with DualCool package

Key Features

• 65-A continuous operating current capabilityOver 93.5% system efficiency at 30 AHigh-frequency operation (up to 1.25 MHz)Diode emulation mode with FCCMTemperature compensated bi-directional current senseAnalog temperature outputFault monitoring - OTP, HS OCP, and short circuit protection3.3-V and 5-V PWM signal compatibleTri-state PWM inputIntegrated bootstrap switchOptimized dead time for shoot-through protectionHigh-density QFN 5-mm × 6-mm FootprintUltra-low-inductance packageSystem optimized PCB footprintDualCool™ packagingRoHS compliant, lead-free terminal platingHalogen free65-A continuous operating current capabilityOver 93.5% system efficiency at 30 AHigh-frequency operation (up to 1.25 MHz)Diode emulation mode with FCCMTemperature compensated bi-directional current senseAnalog temperature outputFault monitoring - OTP, HS OCP, and short circuit protection3.3-V and 5-V PWM signal compatibleTri-state PWM inputIntegrated bootstrap switchOptimized dead time for shoot-through protectionHigh-density QFN 5-mm × 6-mm FootprintUltra-low-inductance packageSystem optimized PCB footprintDualCool™ packagingRoHS compliant, lead-free terminal platingHalogen free

Description

The CSD96497 NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design. The CSD96497 NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
