2304 Series

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Number of Rows	Mounting Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions	Connector Type	Overall Contact Length [x]	Overall Contact Length [x]	Style	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Termination	Material Flammability Rating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]
3M Electronic Specialty 2304-6211-TG	2.54 µm	100 µin	Black	1	Through Hole	3.05 mm	0.12 in	-55 C	105 ░C	3 A	Gold	8.08 mm	0.318 in	Square	Copper Alloy	Unshrouded	0.25 µm	10 µin	Male Pin	4	Header	13.67 mm	0.538 in	Board to Board Cable	Push-Pull	0.1 "	2.54 mm	Tin-Lead	All	Solder	UL94 V-0	0.1 in	2.54 mm
3M Electronic Specialty 2304-5111-TG	2.54 µm	100 µin	Black	1	Right Angle Through Hole	3.05 mm	0.12 in	-55 C	105 ░C	3 A	Gold	5.84 mm	0.23 in	Square	Copper Alloy	Unshrouded	0.25 µm	10 µin	Male Pin	4	Header			Board to Board Cable	Push-Pull	0.1 "	2.54 mm	Tin-Lead	All	Solder	UL94 V-0	0.1 in	2.54 mm
3M Electronic Specialty 2304-6221-TG	2.54 µm	100 µin	Black		Through Hole	3.05 mm	0.12 in	-55 C	105 ░C	3 A	Gold	8.08 mm	0.318 in	Square	Copper Alloy	Unshrouded	0.25 µm	10 µin	Male Pin	4	Header	13.67 mm	0.538 in	Board to Board Cable	Push-Pull	0.1 "	2.54 mm	Tin-Lead	All	Solder	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	2

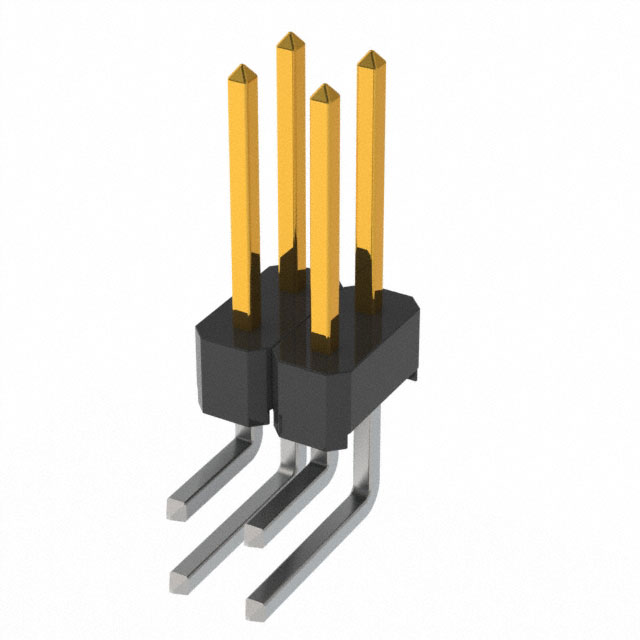

3M Electronic Specialty 2304-5221-TG	2.54 µm	100 µin	Black		Right Angle Through Hole	2.79 mm		-55 C	105 ░C	3 A	Gold	8.08 mm	0.318 in	Square	Copper Alloy	Unshrouded	0.25 µm	10 µin	Male Pin	4	Header			Board to Board Cable	Push-Pull	0.1 "	2.54 mm	Tin-Lead	All	Solder	UL94 V-0			0.1 in	2.54 mm	2	6.14 mm	0.242 in	0.11 in
3M Electronic Specialty 2304-6121-TG	2.54 µm	100 µin	Black		Through Hole	3.05 mm	0.12 in	-55 C	105 ░C	3 A	Gold	5.84 mm	0.23 in	Square	Copper Alloy	Unshrouded	0.25 µm	10 µin	Male Pin	4	Header	11.43 mm	0.45 in	Board to Board Cable	Push-Pull	0.1 "	2.54 mm	Tin-Lead	All	Solder	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	2
