TMB-V9 Series

Catalog

2.92(F)2-H,VL,FIELDREP

Part	Mating Cycles	Connector Type	Features	Contact Termination	Connector Style [x]	Center Contact Plating	Body Material	Housing Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Center Contact Material	Number of Ports	Impedance	Fastening Type	Mounting Type	Shield Termination	Frequency - Max [Max]	Mounting Feature	Body Finish

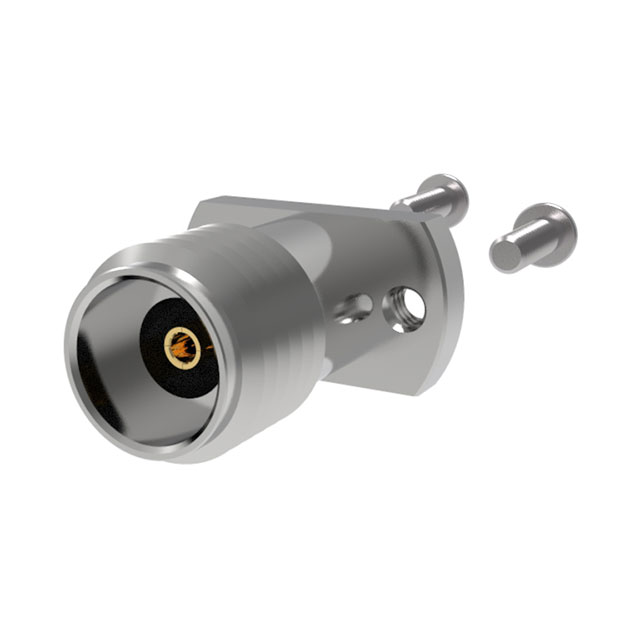

Amphenol CDI TMB-V9F2-3L1	500	Female Socket Jack	Field Replaceable For Hermetically Sealed Pin	Compression	2.92 mm	Gold	Stainless Steel	Silver	500 V	-55 C	85 °C	0.38 dB	Beryllium Copper	1	50 Ohms	Threaded	Surface Mount	Screw	40 GHz	Flange

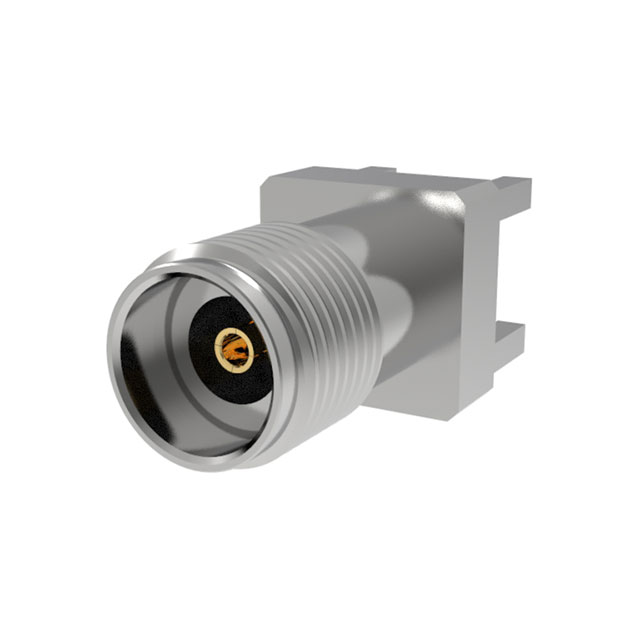

Amphenol CDI TMB-V9FS-3SM	500	Female Socket Jack		Solder	2.92 mm	Gold	Brass	Gold	400 V	-65 ░C	165 °C	0.6 dB	Beryllium Copper	1	50 Ohms	Threaded	Through Hole	Solder	40 GHz		Gold
Amphenol CDI TMB-V9FS-3SM		Female Socket Jack		Solder	2.92 mm			Gold					Beryllium Copper	1	50 Ohms	Threaded	Through Hole	Solder	40 GHz
Amphenol CDI TMB-V9F2-3L1		Female Socket Jack	Field Replaceable For Hermetically Sealed Pin	Compression	2.92 mm			Silver					Beryllium Copper	1	50 Ohms	Threaded	Surface Mount	Screw	40 GHz	Flange
