BZV6 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Operating Force [Min] | Operating Force [Max] | Mounting Type | Voltage Rating - AC | Ingress Protection | Voltage Rating - DC | Termination Style | Release Force | Current Rating (Amps) | Overtravel | Overtravel | Actuator Type | Switch Function | Features | Pretravel | Pretravel | Differential Travel | Differential Travel | Circuit | Operating Position | Operating Position | Operating Force [Min] [custom] | Operating Force [Max] [custom] | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

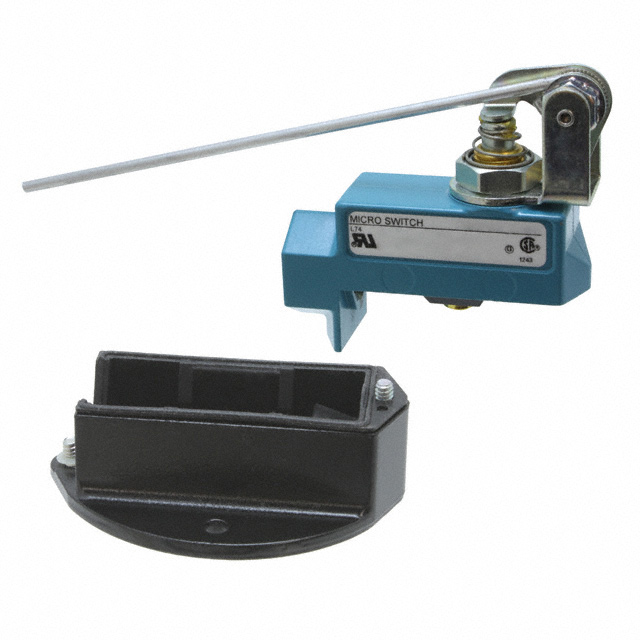

 Honeywell Sensing and Productivity Solutions | 85 gf | 198 gf | Chassis Mount | 125 V | IP66 | 125 VDC | Screw Terminal | 28 gf | 15 A 500 mA | 0.838 in | 21.3 mm | Adjustable Rod | On-Mom | Actuator Seal Boot | 18.2 mm | 0.718 in | 5.8 mm | 0.229 in | SPDT | |||||

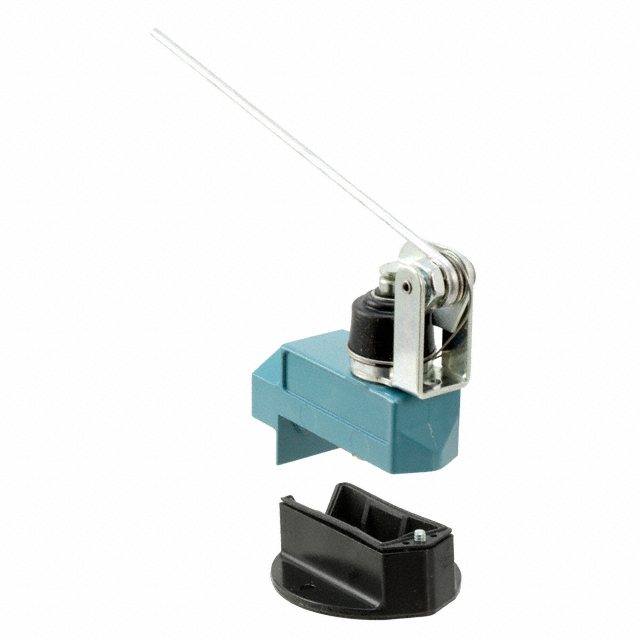

 Honeywell Sensing and Productivity Solutions | 56 gf | 141 gf | Chassis Mount | 125 V | IP40 | 125 VDC | Screw Terminal | 57 gf | 15 A 500 mA | 0.838 in | 21.3 mm | Adjustable Rod | On-Mom | 18.2 mm | 0.718 in | 5.8 mm | 0.229 in | SPDT | ||||||

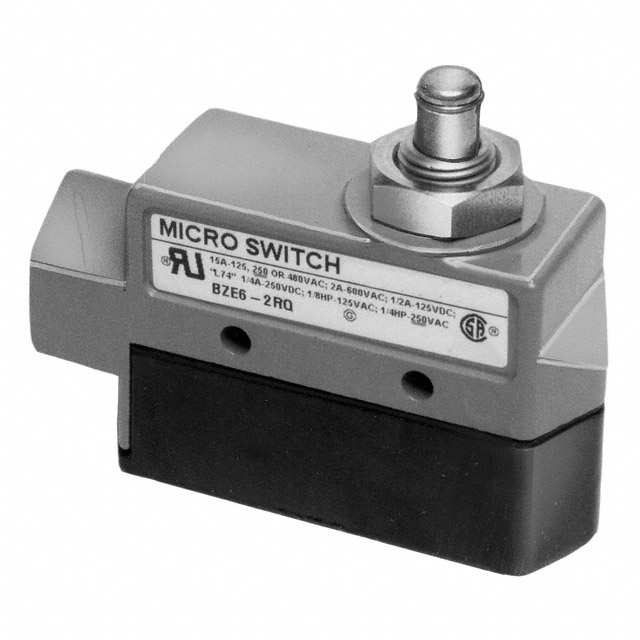

 Honeywell Sensing and Productivity Solutions | 255 gf | 368 gf | Chassis Mount | 125 V | IP40 | 125 VDC | Screw Terminal | 113 gf | 15 A 500 mA | 0.219 in | 5.6 mm | Round (Pin Plunger) | On-Mom | Steel Plunger | 0.4 mm | 0.015 in | 0.05 mm | 0.002 in | SPDT | 2.5 in | 63.5 mm | |||

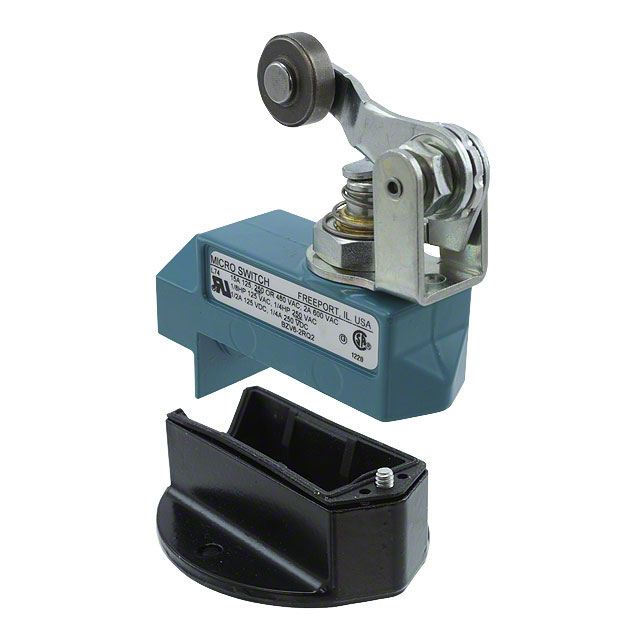

 Honeywell Sensing and Productivity Solutions | Chassis Mount | 125 V | IP40 | 125 VDC | Screw Terminal | 170 gf | 15 A 500 mA | 0.219 in | 5.6 mm | Lever Roller | On-Mom | 4.8 mm | 0.188 in | 0.15 mm | 0.006 in | SPDT | 283 | 510 | ||||||

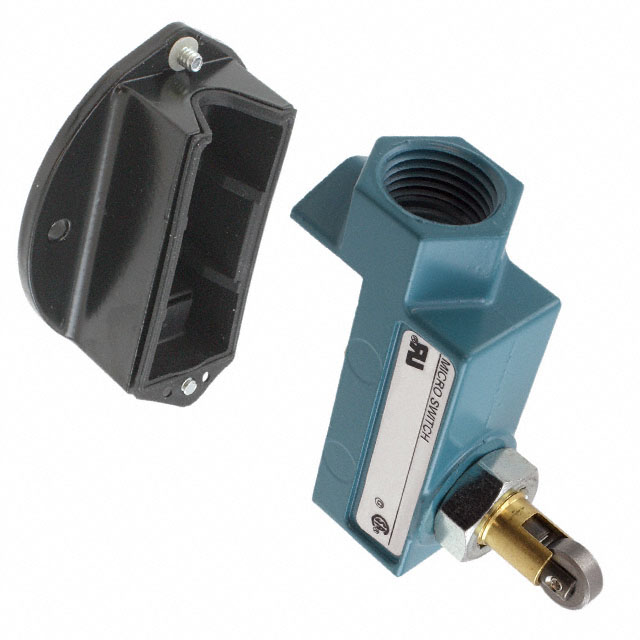

 Honeywell Sensing and Productivity Solutions | 255 gf | 368 gf | Chassis Mount | 125 V | IP40 | 125 VDC | Screw Terminal | 113 gf | 15 A 500 mA | 0.141 in | 3.6 mm | Roller Plunger | On-Mom | 0.4 mm | 0.015 in | 0.05 mm | 0.002 in | SPDT | 2.953 " | 75 mm | ||||

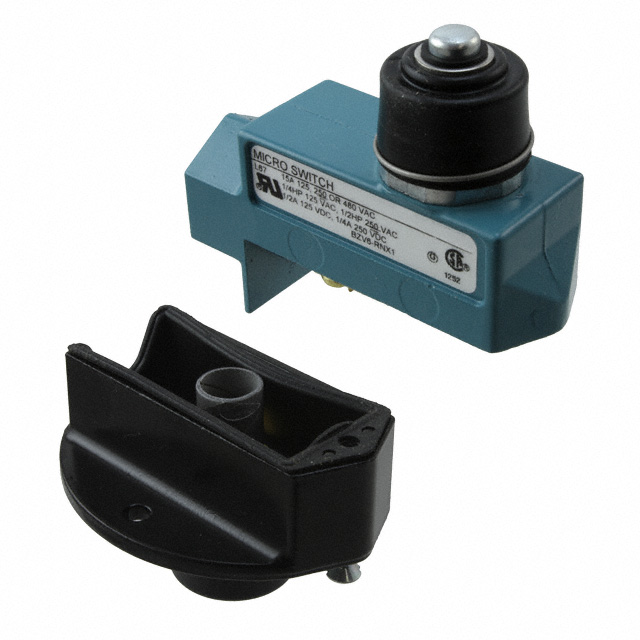

 Honeywell Sensing and Productivity Solutions | 170 gf | 567 gf | Chassis Mount | 125 V | IP66 | 125 VDC | Screw Terminal | 170 gf | 15 A 500 mA | 0.187 in | 4.75 mm | Round (Pin Plunger) | On-On | Actuator Seal Boot Reset Plunger | 2 mm | 0.078 " | SPDT | |||||||

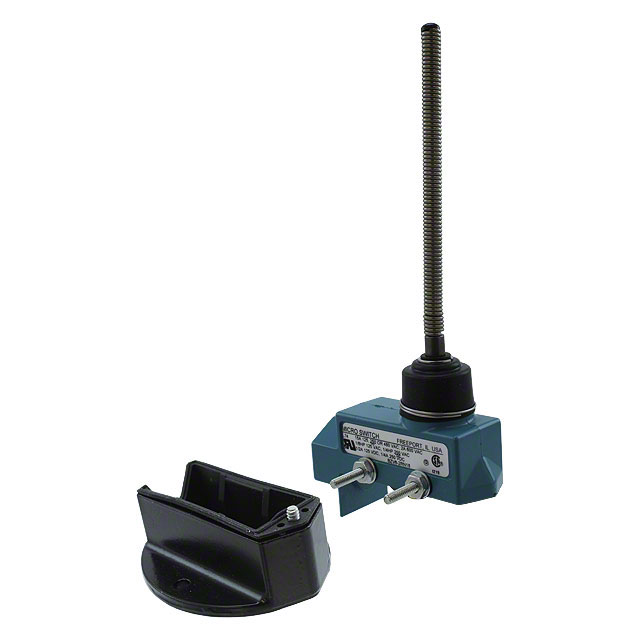

 Honeywell Sensing and Productivity Solutions | Chassis Mount | 125 V | IP66 | 125 VDC | Screw Terminal | 15 A 500 mA | Coil Spring | On-Mom | Actuator Seal Boot | SPDT | 15 ° | 198 gf |
