120953 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

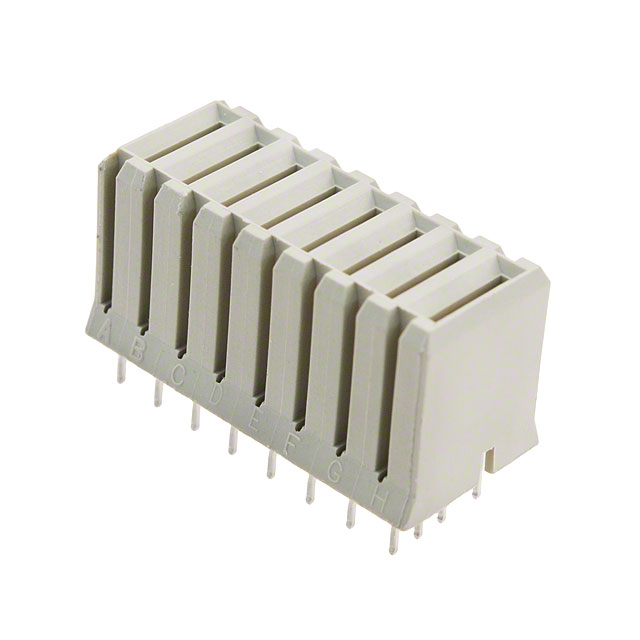

BACKPLANE CONN, RCPT, 8POS, 1ROW, 3MM ROHS COMPLIANT: YES
| Part | Voltage Rating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Termination | Mounting Type | Connector Usage | Number of Positions | Number of Rows | Number of Positions Loaded | Color | Connector Style | Contact Layout, Typical | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 250 V | UL94 V-0 | -55 C | 125 °C | Receptacle Female Blade Sockets | Press-Fit | Through Hole | Backplane | 8 | 1 | All | Gray | Blade Power | 8 Power | Gold Gold-Palladium |

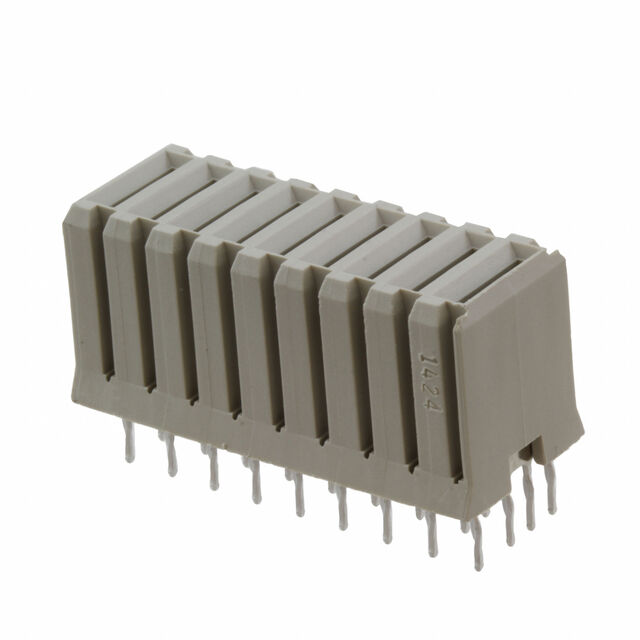

 TE Connectivity AMP Connectors | 250 V | UL94 V-0 | -55 C | 125 °C | Receptacle Female Blade Sockets | Press-Fit | Through Hole | Backplane | 9 | 1 | All | Gray | Blade Power | 9 Power | Gold Gold-Palladium |
