505405 Series

Manufacturer: Molex

Catalog

CONN RCPT 2POS 0.059 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Applications	Insulation Material	Insulation Height [custom]	Insulation Height [custom]	Number of Rows	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Voltage Rating	Connector Type	Number of Positions	Termination	Material Flammability Rating	Contact Type	Insulation Color	Current Rating (Amps)

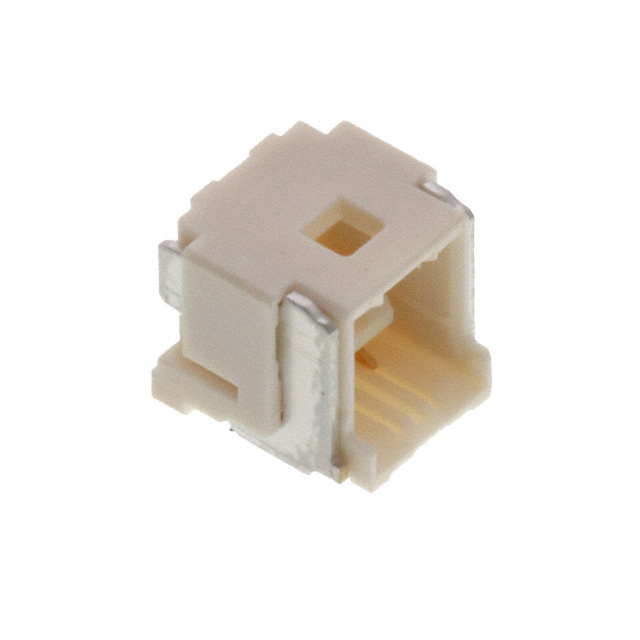

Molex 5054050270	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	2	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge

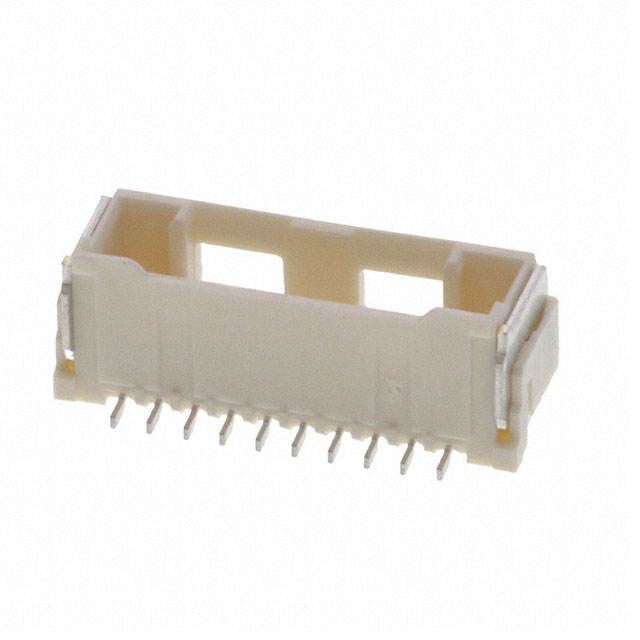

Molex 5054051070	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	10	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
Molex 5054051260	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Pick and Place Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	12	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
Molex 5054050560	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Pick and Place Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	5	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
Molex 5054050860	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Pick and Place Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	8	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
Molex 5054050660	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Pick and Place Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	6	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
Molex 5054051560	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Pick and Place Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	15	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
Molex 5054050760	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Pick and Place Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	7	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge

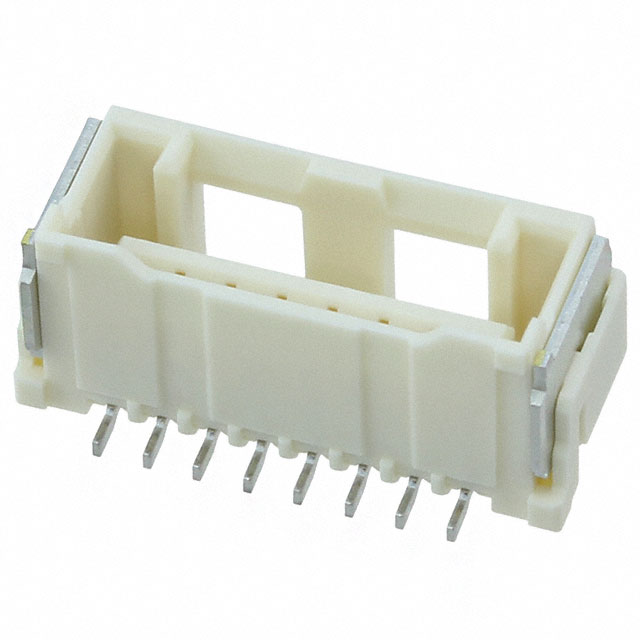

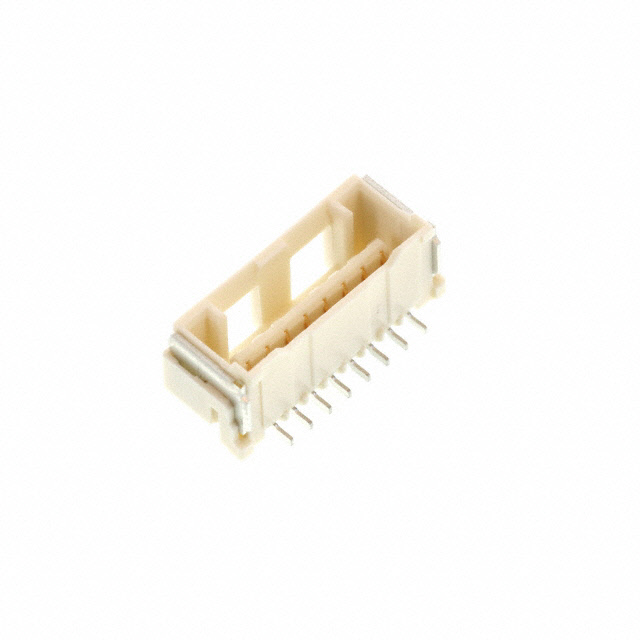

Molex 5054050870	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	8	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
Molex 5054050460	39.4 çin	1 çm	Copper Alloy	Automotive General Purpose Industrial Lighting Medical	Resin	0.285 in	7.25 mm	1	Latch Holder	All	Tin	Surface Mount	-40 C	105 ░C	Gold	Pick and Place Solder Retention	8 µin	0.203 µm	Board to Cable/Wire	100 V	Receptacle	4	Solder	UL94 V-0	Forked	Beige	Varies by Wire Gauge
