GW VJLPL1.CM Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

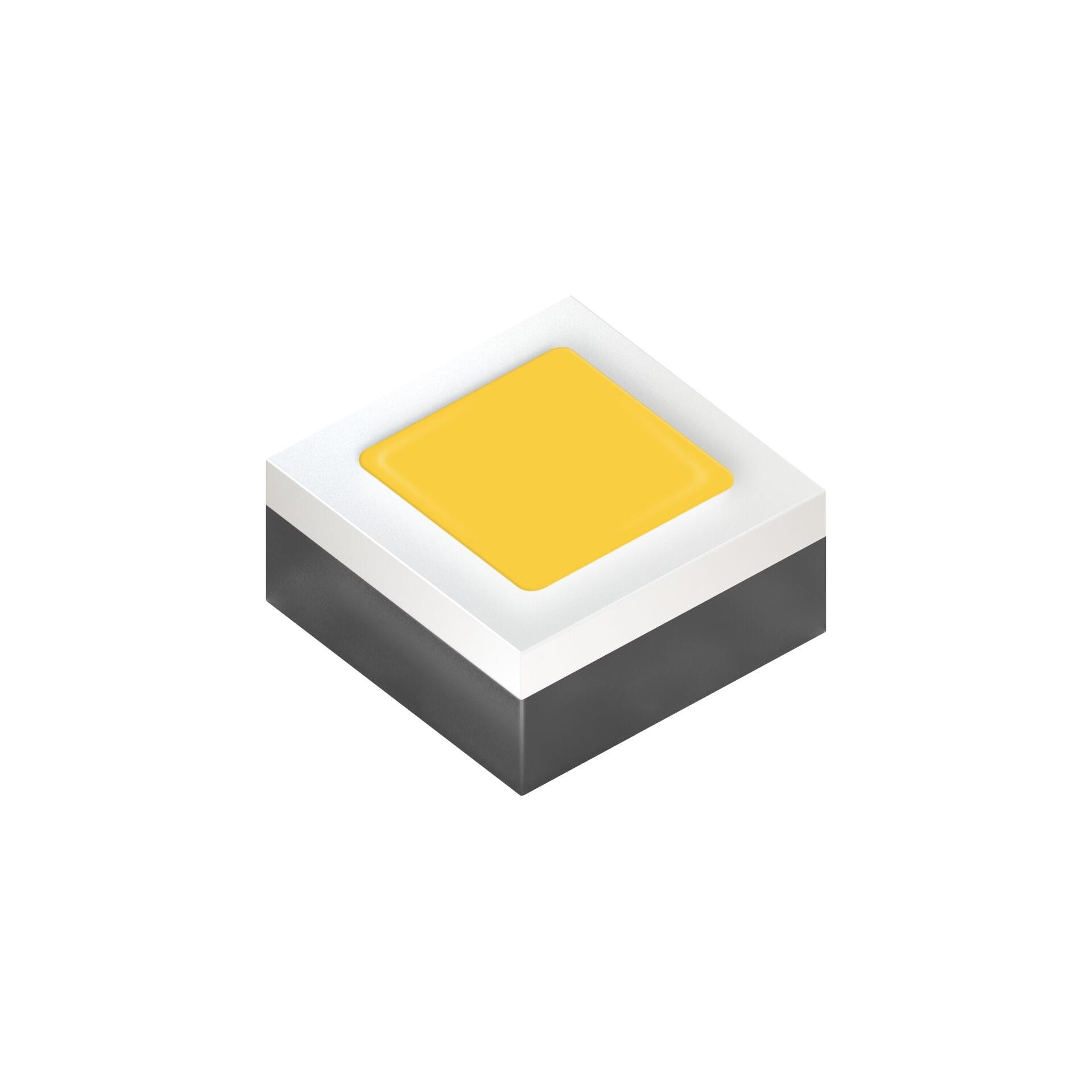

LED OSLON PURE 1414 WHT 3500K
| Part | Current - Max [Max] | CCT (K) | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | Flux @ 85°C, Current - Test | Flux @ 85°C, Current - Test [Max] | Flux @ 85°C, Current - Test [Min] | Mounting Type | CRI (Color Rendering Index) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current - Test | Package / Case | Package / Case | Thermal Resistance of Package [diameter] | Viewing Angle | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 1 A | 3500 K | 133 lm/W | 2.8 V | 130 lm | 145 lm | 115 lm | Surface Mount | 90 | 0.055 in | 1.4 mm | 0.055 in | 1.4 mm | 350 mA | 0505 | 1313 Metric | 5.9 °C/W | 120 ° | 0.85 mm | 0.033 " | Warm White |
 ams-OSRAM USA INC. | 1 A | 122 lm/W | 2.8 V | 120 lm | 135 lm | 105 lm | Surface Mount | 90 | 0.055 in | 1.4 mm | 0.055 in | 1.4 mm | 350 mA | 0505 | 1313 Metric | 5.9 °C/W | 120 ° | 0.85 mm | 0.033 " | Warm White | |
ams-OSRAM USA INC. | 1 A | 1800 K | 87 lm/W | 2.8 V | 85 lm | Surface Mount | 90 | 0.055 in | 1.4 mm | 0.055 in | 1.4 mm | 350 mA | 0505 | 1313 Metric | 5.9 °C/W | 120 ° | 0.95 mm | 0.037 " | Warm White | ||
ams-OSRAM USA INC. | 1 A | 6500 K | 133 lm/W | 2.8 V | 130 lm | 145 lm | 115 lm | Surface Mount | 90 | 0.055 in | 1.4 mm | 0.055 in | 1.4 mm | 350 mA | 0505 | 1313 Metric | 5.9 °C/W | 120 ° | 0.85 mm | 0.033 " | Cool White |
ams-OSRAM USA INC. | 1 A | 2700 K | 122 lm/W | 2.8 V | 120 lm | 135 lm | 105 lm | Surface Mount | 90 | 0.055 in | 1.4 mm | 0.055 in | 1.4 mm | 350 mA | 0505 | 1313 Metric | 5.9 °C/W | 120 ° | 0.85 mm | 0.033 " | Warm White |
