GST40A24 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 40W

Part	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	No Load Power Consumption	Applications	Efficiency	Polarization	Cord Length	Cord Length	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [x]	Form	Input Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Region Utilized	Voltage - Output	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [z]
MEAN WELL USA Inc. GST40A24-P1I	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V
MEAN WELL USA Inc. GST40A24-P2MR	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug R/A			Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V	5.5 mm	11 mm	2.5 mm
MEAN WELL USA Inc. GST40A24-P2IR	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug R/A			Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V	5.5 mm	9.5 mm	2.1 mm
MEAN WELL USA Inc. GST40A24-NC	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI		70.9 "	1.8 m	IEC 320-C14				Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V
MEAN WELL USA Inc. GST40A24-P1MR	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug R/A			Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V	5.5 mm	11 mm	2.5 mm
MEAN WELL USA Inc. GST40A24-P2J	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	11 mm	Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V

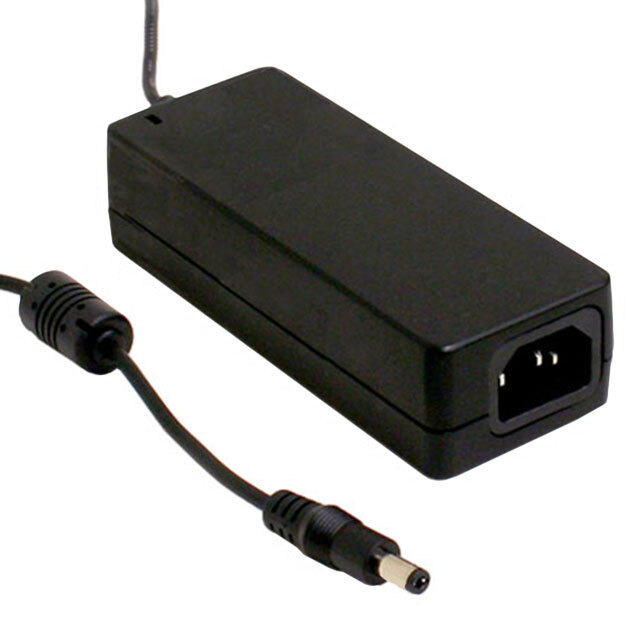

MEAN WELL USA Inc. GST40A24-P1M	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug	2.5 mm 5.5 mm	11 mm	Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V
MEAN WELL USA Inc. GST40A24-P1L	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V
MEAN WELL USA Inc. GST40A24-P1LR	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug R/A	2.5 mm 5.5 mm		Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V				9.5 mm
MEAN WELL USA Inc. GST40A24-P2I	1.67 A	264 VAC	90 VAC	-30 ░C	70 °C	40 W	75 mW	ITE (Commercial)	Level VI	Positive Center	70.9 "	1.8 m	IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Desktop (Class I)	Cord (Sold Separately)	1.97 in	1.24 "	4.92 in	50 mm	125 mm	31.5 mm	BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM	International	24 V
