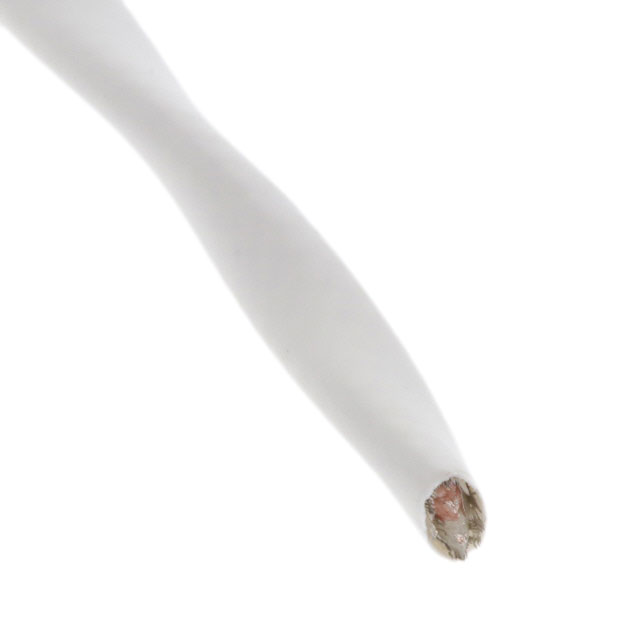

2524E0114 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
COAX CABLE-TWINAXIAL
| Part | Jacket (Insulation) Material | Impedance | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Usage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Type | Shield Coverage | Shield Material | VoP, Velocity of Propagation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polyvinylidene Fluoride (PVDF) | 125 Ohms | 0.179 in | 4.55 mm | Twinaxial | Copper Alloy Silver Coated | 36 AWG | 19 Strands | 24 AWG | RF Signal | 1.83 mm | 0.072 " | Braid | 90 % | Copper Tinned | 77 |
TE Connectivity Raychem Cable Protection | Polyvinylidene Fluoride (PVDF) | 125 Ohms | 0.179 in | 4.55 mm | Twinaxial | Copper Alloy Silver Coated | 36 AWG | 19 Strands | 24 AWG | RF Signal | 1.83 mm | 0.072 " | Braid | 90 % | Copper Tinned | 77 |
